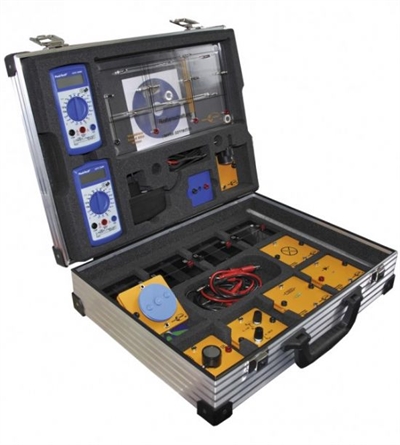

The name says it all: this fully equipped experiment system can be used wherever you are without further components. This kit already includes all necessary ancillary equipment, like measuring equipment, and is delivered in an aluminum case with heavy-duty foam inserts. The scope of experiments ranges from simple trials that show the basic characteristics of the solar energy, to more challenging experiments dealing with topics like IV characteristics or temperature dependency of solar cells. Because of the large range of potential experiments, the product is also suitable for internal workshops in companies as well as a demonstration kit for sales representatives.
Experiments:
Solar energy + electric lessons:
Series and parallel connection of solar cells Power dependence on area of the solar cell Power dependence on the angle of incidence Power dependence on level of illumination Power dependence ratio of energy conversion Internal resistance of solar cells Dark characteristic curve of solar cells Inhibiting and conducting direction in illumination and darkness IV characteristic and fill factor of the solar cell IV characteristic of the solar cell in dependence on the level of illumination Power dependence on temperature Shading effect of solar cells in series connection Shading effect of solar cells in parallel connection The solar cell as transmission measure Power dependence on the frequency of the incident light Optics: Differences in brightness Tilt of the solar cells Diffused radiation Direct radiation Albedo radiation Colour characteristics Colour mixtures Optical illusions (Benham disk)

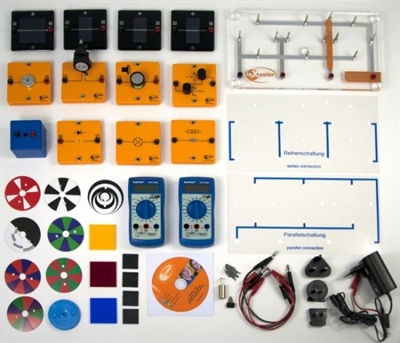

List of components:
3 x 1100-01 Solar module 0,5 V, 420 mA, QC 1 x 1100-02 Solar panel 0.5 V, 840 mA 1 x 1100-19 leXsolar Base unit Large (including circuit diagrams) 1 x 1100-20 Lighting module 1 x 1100-21 Diode-module 1 x 1100-22 Resistor module 1 x 1100-23 Potentiometer module 1 x 1100-24 Gear motor module 1 x 1100-25 Buzzer module 1 x 1100-26 Light bulb module 1 x 1100-27 Motor module without gear 1 x 1100-28 Color discs with mount - Set 1 1 x 1100-29 Solar cell cover set (4 pieces) 1 x 1100-30 Color filters 1 x 2105-00 Universal - power supply 1 x L2-05-024 Hook weight 20g 2 x L2-06-011 Digital multimeter 2 x L2-06-012 Test lead black 25 cm 2 x L2-06-013 Test lead red 25 cm 1 x L2-06-016 Laboratory thermometer 1 x L3-01-009 Aluminiumkoffer leXsolar-PV Ready-to-go 1 x L3-03-016 leXsolar-CD 1 x L3-01-047 Inset PV-Ready to go Extras available: L3-03-054 Lehrerheft leXsolar-PV L3-03-034 Anleitungsheft leXsolar-PV Ready-to-go
