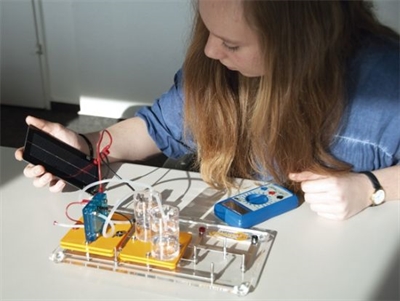

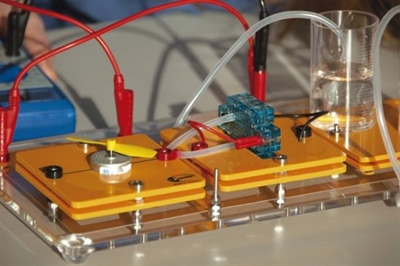

This product was completely reworked and now contains the world?s first SOFC-fuel cell for educational purposes. Together with the already established PEM-fuel cells and the components of a complete solar-hydrogen cycle (electrolyzer, PEM fuel cell and solar module), this product represents the most comprehensive fuel cell experimentation system on the educational market. The electrical consumer (motor) allows for realistic and demonstrative experiments. Highly didactical instruction manuals complete the product. leXsolar-H2 Large can be used in physics and chemistry class as well as in technology class. The product can be expanded with two additional PEM-fuel cells to illustrate the stacking of fuel cells. The expansion ethanol-fuel cell demonstrates a third fuel cell technology.
Experiments:
Set up of an electrolyzer and the different fuel cells
Characteristics of an electrolyzer Operation of an electrolyzer Characteristics of a PEM-Fuel cell Operation of the PEM-Fuel cell Characteristics of a SOFC-Fuel cell Operation of the SOFC-Fuel cell Faraday and energy efficiency of the electrolyzer Faraday and energy efficiency of the PEM-fuel cell

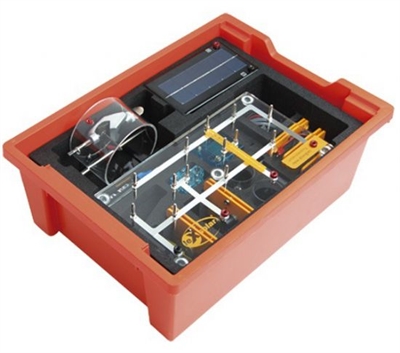

List of components:
1 x 1218-01 SOFC-Fuel cell module 1 x 1218-02 PEM-Fuel cell module 1 x 1218-03 Electrolyzer module 2.0 1 x 1218-04 Box 1218 1 x 1100-23 Potentiometer module 1 x 1100-27 Motor module without gear 1 x 1100-31 Solar module 2.5 V, 420 mA 1 x 1213-01 Gas storage module H2/O2 1 x 1100-19 leXsolar Base unit Large (including circuit diagrams) 1 x L2-06-133 Gas burner small 1 x L3-01-013 Lid for tray 1 x L3-01-117 Insert "H2 Large" 1 x L3-03-016 leXsolar-CD 1 x L2-02-017 Yellow propeller Extras needed: 1 x L2-04-022 Lamp with table clamps 2 x L2-06-012 Test lead black 25 cm 2 x L2-06-013 Test lead red 25 cm 1 x 9100-05 PowerModule 2 x 9100-03 IV-Module Extras available: 1218-02 PEM-Brennstoffzellenmodul L3-03-044 Schülerheft leXsolar-H2 Large L3-03-060 Lehrerheft leXsolar-H2 Large 1200-17 leXsolar-H2 Charger 1200-19 leXsolar-H2 Storage complete 1700-01 leXsolar-Ethanolbrennstoffzelle 9102 leXsolar-SmartControl Large L3-03-045 Student's manual leXsolar-H2 Large L3-03-061 Teacher´s manual leXsolar-H2 Large
