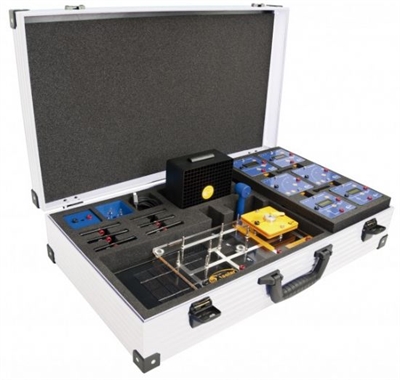

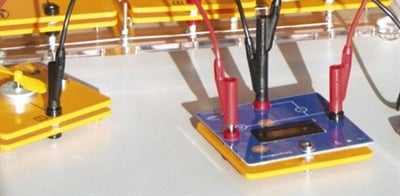

Ready-to-go stands for a fully equipped product of the leXsolar-SmartGrid line in a durable aluminum suitcase that is ready anytime and anywhere. leXsolar-SmartGrid Ready-to-go allows the construction of a Smart Grid with various renewable energy sources on a laboratory scale. It?s possible to choose different energy generation profiles and observe their effect on the system. The various available storage units and consumers make for a complex smart grid and a multitude of possible scenarios to analyze. The energy flow within the smart grid can be measured directly with a smartmeter or wirelessly with software. This enables the students to control the system manually or with the help of the SmartControl-software. All necessary SmartControl components for measuring and control are already included as well as the platform-independent mobile device support!This allows every student to use their own mobile device to supervise the network control center. The package includes wind and solar power components and, thus, the foundation for the most important basic experiments.
Experiments:
1. Basic experiments on photovoltaic 1.1 The I-V-characteristic of a solar module 1.2 The I-V-characteristic of a solar module depending on the illuminance 1.3 The I-V-characteristic of a solar module depending on the temperature 2. Basic experiments on wind power 2.1 The dependence of the power on the pitch angle and the blade design 2.2 The dependence of the power on the number of blades 2.3 The dependence of the power on the wind direction 3. Basic experiments on energy storage technologies 3.1 The I-V-characteristic of an electrolyzer 3.2 Behavior of the voltage and the current during charging of an electrolyzer 3.3 The I-V-characteristic of a fuel cell 3.4 Behavior of the voltage and the current during discharging a fuel cell 3.5 The t-V- and t-I-characteristic of a capacitor during charging 3.6 The t-V- and t-I-characteristic of a capacitor during discharging 3.7 The use of the electric car with capacitor and fuel cell 4.1 The power fluctuations of a photovoltaic station 4.2 The power fluctuations of a wind turbine 4.3 Energy supply of a building by a power plant 4.4 Energy supply of a building by a power plant and a photovoltaic station 4.5 Energy supply of a building by a power plant, a photovoltaic station and an energy storage 4.6 The behavior of the voltage in a conventional line grid 4.7 The behavior of the voltage in a line grid with photovoltaic station 4.8 The behavior of the voltage in a line grid with photovoltaic station depending on the consumption 4.9 The behavior of the voltage in a line grid with photovoltaic station depending on the distance to the transformer 4.10 The behavior of the voltage in a line grid with photovoltaic station and an intelligent transformer station 4.11 The behavior of the voltage in a line grid with photovoltaic station and an energy storage (fuel cell / E-Mobility) 4.12 The behavior of the voltage in a line grid with photovoltaic station and load management 4.13 Power line monitoring 4.14 Scenario experiment: Smart Grid
Components:
1x 1100-53 SM 5.22V, 380mA, 4mm plug 1x 1100-19 leXsolar-Base unit Large 1x 1100-21 Diode module 2x 1100-26 Light bulb module 1x 1100-27 Motor Module without Gear 1x 1118-17 Base for solar panel 1x 1400-12 leXsolar-Wind rotor set 1x 1400-19 Wind machine 1x 1400-22 Wind turbine module 2x 1600-01 power grid module 1x 1600-02 Capacitor module 5.0F/5.4V 1x 1801-02 Electric model car 1x 9100-03 AV-Module 2x 9100-04 SmartMeter 2x 9100-05 PowerModule 1x 1100-61 Potentiometer module 110 Ohm 12x L2-02-016 Bumpon transparent 5,0 mm height X 11,1mm diameter 1x L2-02-017 Propeller 1x L2-04-080 Lamp housing 1x L2-04-116 Illuminant 120W, 12° 4x L2-06-012 Test lead black 25 cm 7x L2-06-013 Test lead red 25 cm 3x L2-06-014 Test lead black 50 cm 1x L2-06-067 Reversible Fuel cell 1x L3-01-139 Insert SmartGrid RtG 1605 1x L3-01-140 Aluminium case SmartGrid RtG 1605 1x L3-03-169 Layout diagram 1605 SmartGrid Ready-to-go 1x L3-03-176 Azimuth angle scale 3x L2-06-015 Test lead red 50 cm 1x L3-03-258 Info sheet initial startup
Extras available:
L3-03-177 Anleitungsheft leXsolar-SmartGrid Ready-to-go L3-03-178 Lehrerheft leXsolar-SmartGrid Ready-to-go L3-03-187 Teacher`s manual leXsolar-SmartGrid Ready-to-go L3-03-188 manual leXsolar-Instructions manual SmartGrid Ready-to-go L2-04-044 electric grid adapter set 1100-63 DC converter 120V - 240V
