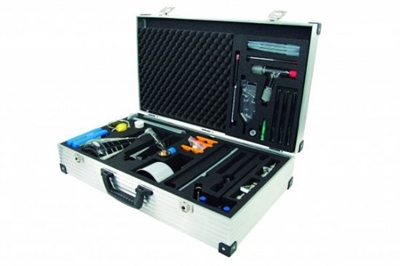

The entire process of producing biofuel is demonstrated with leXsolar-Biofuel Ready-to-go in the form of student experiments. The suitcase contains all necessary parts and components and can be used from any location. The first step is resource selection and fermentation. The resulting mash is then distilled with the custom-built leXsolar-condensor and the resulting ethanol will be characterized. Lastly, the produced bio fuel needs to be converted into usable energy - for example into electricity with the provided ethanol fuel cell. leXsolar-BioFuel Ready-to-go does not only cover bio ethanol production but also the generation of biodiesel through transesterification of fats.
Experiments:
Part 1: Biodiesel production
Transesterification from fat to Biodiesel (FAME) Determination of fat parameters Extraction of fats from foods and oil plants Part 2: Alcohol fermentation Production of a mash/ alcoholic fermentation Fermentation of different sugar types (including catalytic splitting of starch) Proof of fermentation gases Part 3: Distillation and production of Bioethano Distillation of mash Characteristics of the produced Ethanol Part 4: Ethanol fuels Introduction Ethanol fuel cell I-V curve of Ethanol fuel cells Dependency of Ethanol fuel cells on concentration and temperature Energy balance of the whole process

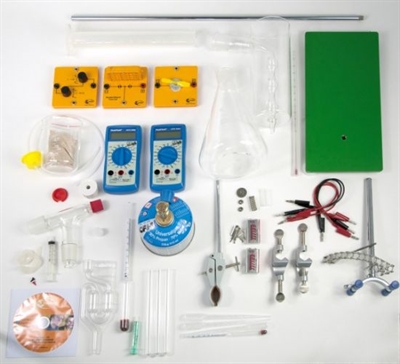

List of components:

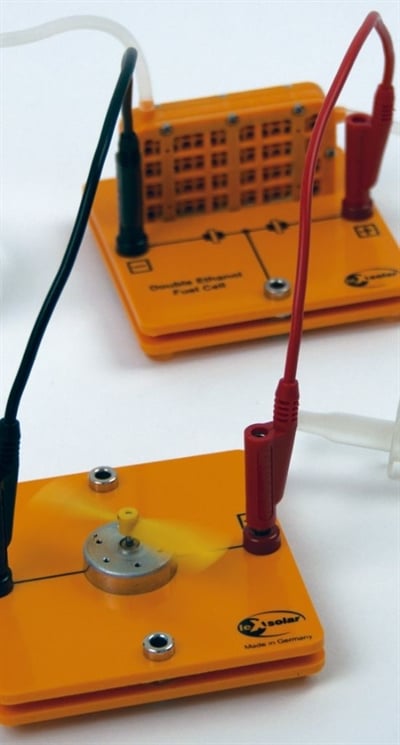

1 x 1100-23 Potentiometer module 1 x 1100-27 Motor module without gear 1 x 1700-01 leXsolar Ethanol fuel cell 1 x 1702-01 Plug with hose 1 x 1702-02 Yeast 1 x 1700-02 Chain clamp 2 x L2-06-011 Digital multimeter 2 x L2-06-012 Test lead black 25 cm 2 x L2-06-013 Test lead red 25 cm 4 x L2-02-016 Bumpon transparent 5,0 mm height X 11,1mm diameter 1 x L2-02-017 Yellow propeller 1 x L2-06-016 Laboratory thermometer 1 x L2-06-070 Distilling head, 2 cores 75°, NS 19/26 1 x L2-06-071 Condenser 1 x L2-06-072 Alcoholmeter 1 x L2-06-075 Erlenmeyer flask 1000 ml 1 x L2-06-076 Airlock 1 x L2-06-077 Rubber stopper 1 x L2-06-079 Areometer 1 x L2-06-082 Borosilicate beaker glass 250 ml 3 x L2-06-083 Test tubes 1 x L2-06-084 Grip stopper for test tube 3 x L2-06-085 Pasteuer pipette 1 x L2-06-086 Measuring cylinder 100ml 1 x L2-06-087 Syringe II 1 x L2-06-110 Silicone ring 1 x L3-03-016 leXsolar-CD 1 x L3-01-099 Koffer "Bio Fuel Ready-to-go" 1 x L3-01-107 Einlage "BioFuel Ready-to-go" 1 x L2-06-114 Bunsen burner 1 x L2-06-116 Universal stand clamp 1 x L2-06-119 Stand rod 60cm, M10 2 x L2-06-120 Double clamp 1 x L2-06-118 Stand base plate Extras available: L3-03-148 Schülerheft leXsolar-BioFuel Ready-to-go L3-03-149 Lehrerheft leXsolar-BioFuel Ready-to-go L3-03-150 Student´s manual leXsolar-BioFuel Ready-to-go L3-03-151 Teacher´s manual leXsolar-BioFuel Ready-to-go
