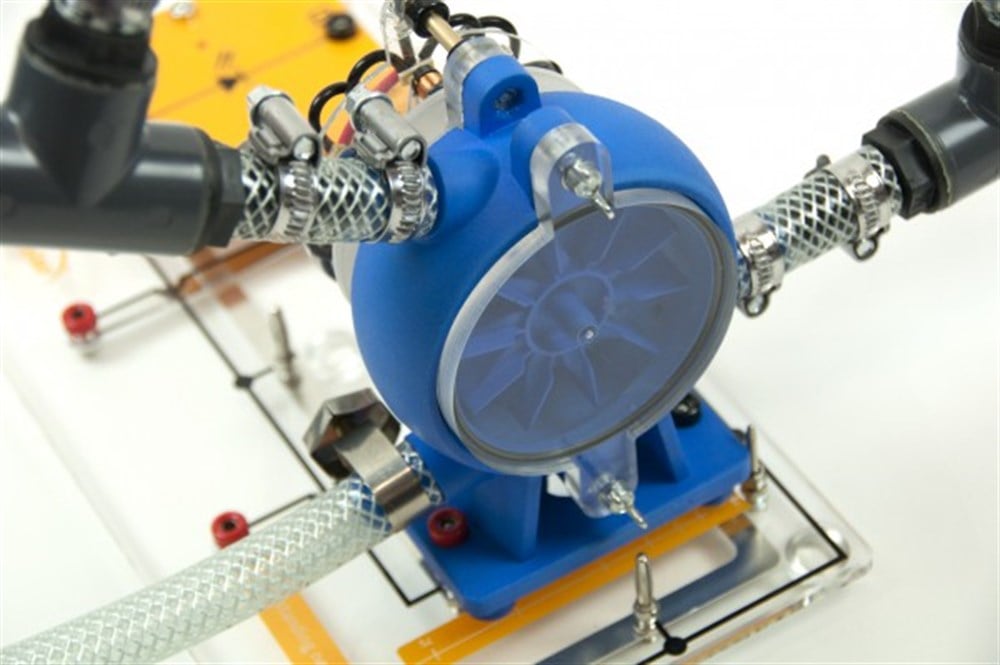

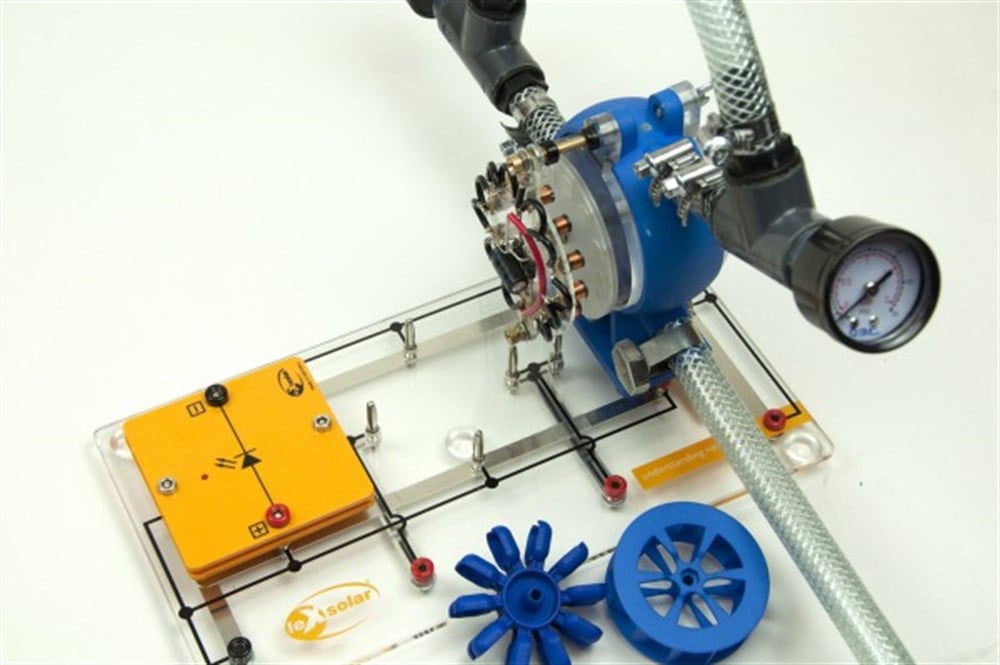

Besides qualitative experiments as introduction into the topic hydropower usage for high school students and basic experiments in technical training, this experimenting kit offers fundamental quantitative experiments on the physics of water turbines. A foundation in reality enjoys, as with all leXsolar products, a high priority. leXsolar-Hydropower Ready-to-go is therefore equipped with different types of turbines - from a simple water wheel to a modern, highly efficient Pelton turbine
Experiments:
- Volume flow, flow velocity and power as a function of the height of fall - Volume flow, flow velocity and power as a function of the pipe cross-section - Comparison of the functionality of pelton turbine, crossflow turbine and waterwheel - Comparison of the performance of the pelton turbine, crossflow turbine and waterwheel in dependence to the volume flow and pressure
Components:

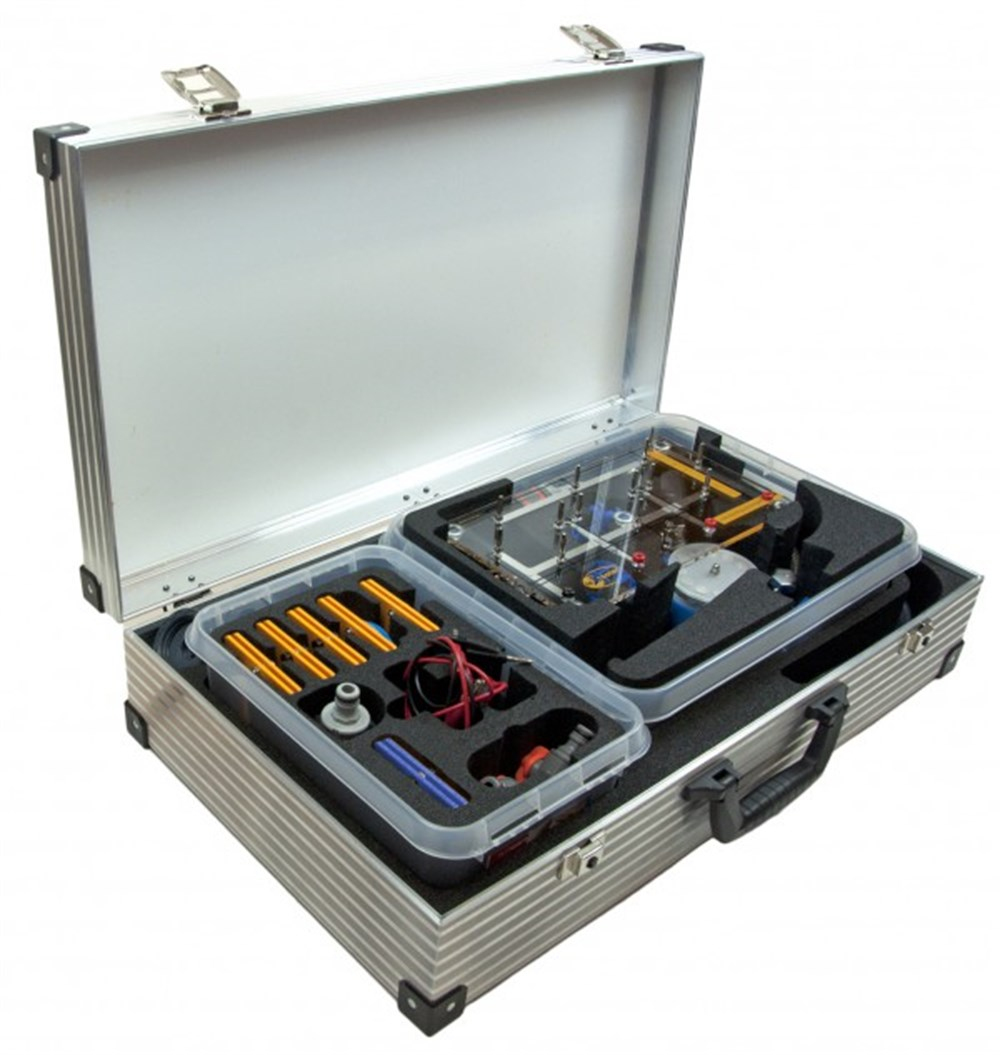

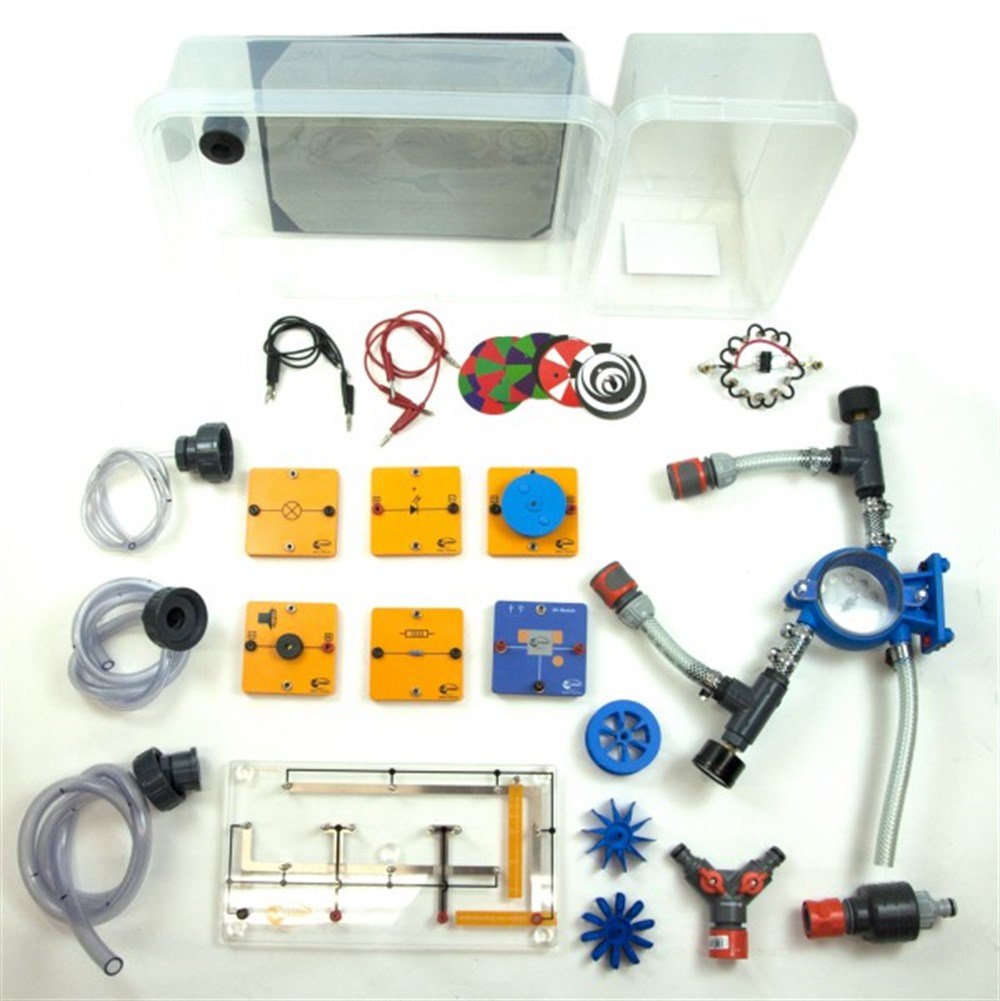

1x 1900-02 Water turbine casing 1x 1900-03 Turbines set 1x 1900-05 Manometer set 2 bar 1x 1900-06 Manometer set 4 bar 1x 1900-07 Intake connector 1x 1900-08 Flow set 4 mm 1x 1900-09 Flow set 8 mm 1x 1900-10 Flow set 12 mm 1x 1905-02 Induction generator 12 fold 1x 9100-03 AV-Module 1x 1100-26 Light bulb module 1x 1400-08 LED-module 2mA, red 1x 1100-25 Buzzer module 1x 1100-27 Motor module without gear 1x 1100-19 leXsolar-Base unit Large 1x 1100-22 Resistor module 1x 1900-11 Flow box 1x 1100-28 Color discs - Set 1 1x 1900-12 Connection set 1x L3-01-202 Aluminium case PV Professional 1905 1x L2-02-066 Water flow meter 2x L2-05-131 Schlauchschelle 1x L3-03-258 Info sheet initial startup 1x L3-03-272 Einräumplan 1905 Hydropower Ready-to-go 0,2x L2-02-062 Gewebeschlauch 12/18mm 1x L2-06-014 Test lead black 50 cm 1x L2-06-015 Test lead red 50 cm 1x L2-06-012 Test lead black 25 cm 1x L2-06-013 Test lead red 25 cm 1x L2-05-135 Schlauchschelle mit Drehkopf und Sechskantschraube, Edelstahl 1x L3-01-197 Container box 6 L 1x L3-01-194 Insert HydroPower RtG 1905
