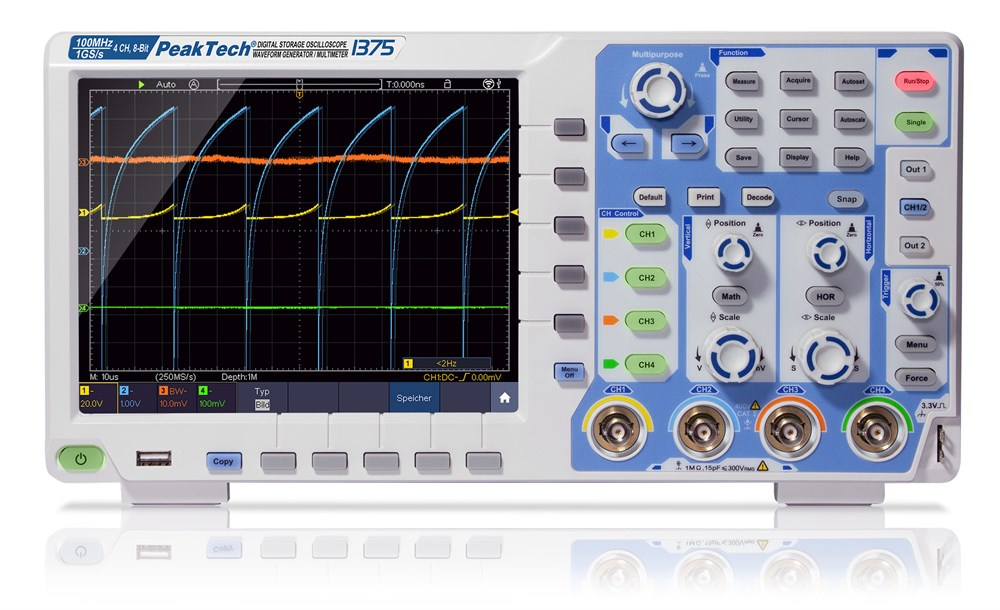

P1375 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH
P1375 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH
P1375 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH

P1375 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH

Marka : Peaktech
Fiyat : 1.575,36€  + KDV
KDV Dahil : 18.197,76TL
TL Fiyat : 18.197,76TL(KDV Dahil)
Toplam Stok Adedi : 0
2.256,32TL 'den başlayan taksitlerle
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Sayfayı Yazdır
Yorum Yaz

100 MHz/ 4 CH, 1 GS/s,"All-in-one" Touchscreen Oscilloscope

4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions, such as the integrated digital multimeter, VGA-Output & CAN-Bus decoder.

For data transmission of the measured values to the PC or for remote control, various interfaces such as LAN, WiFi & USB (Host & Device) are available.

This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
  • High-resolution TFT color display with 800 x 600 pixels
  • 20 cm (8“) TFT color display
  • LAN, WiFi & USB port for real time data transmission
  • Saving of measured values and graphics directly onto the USB-disk
  • Use the optional battery (Model: Akku 6) for off-grid operation
  • Use the W-LAN interface for remote control in dangerous areas
  • Integrated 2-Channel 25 MHz Arbitrary Waveform Generator
  • Integrated digital multimeter with 4000 counts
  • Extended trigger for CAN-Bus, RS232, I2C, SPI
  • Handy and flat case design with carrying handle
  • Autoset function for easy operation
  • Record lenght of max. 40 Mio. points
  • Automatic measurement modes and FFT function
  • Safety: EN 61010-1; CAT II
  • Accessories: USB cable, software CD for Windows, power cable, 2 probes and manual
Bandwidth 100 MHz
Display 20 cm (8") color-TFT
Resolution 800 x 600 Pixel
Channel 4 CH
SPECIFICATIONS :
Sampling rate (1/2/4 CH) 1 GS/s; 500 MS/s; 250 MS/s
Waveform refresh rate 45.000 wfms/s
Rise Time ≤ 3.5 ns
Vertical sensitivity 1 mV - 10 V/div.
Vertical resolution 8 Bits
Horizontal scale 2ns - 1000s/div.
Trigger type Edge, Video, Pulse, Slope, CAN-Bus, RS232, I2C, SPI
Trigger mode Auto, Normal, Single
GENERAL :
Record length 40.000.000 points
Interfaces WiFi, LAN, USB Device, USB Host
Arbitrary Waveform Generator 2 CH, 25 MHz
Multimeter functions DCV,ACV,DCA,ACA,Ohm,Cap,Diode
Dimensions (WxHxD) 340 x 175 x 90 mm
Weight ca. 2,6 kg
EAN 4250569404436
