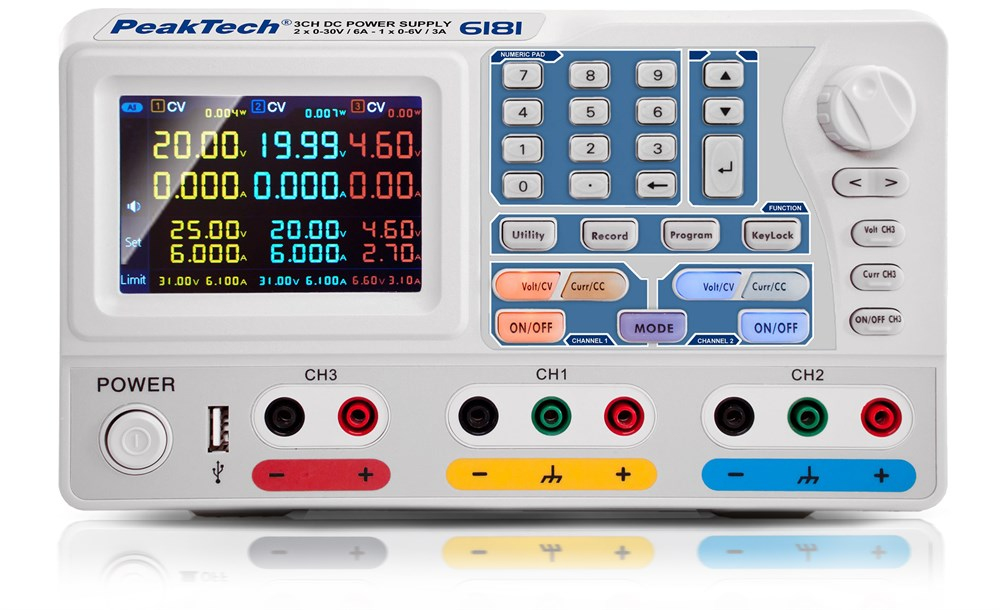

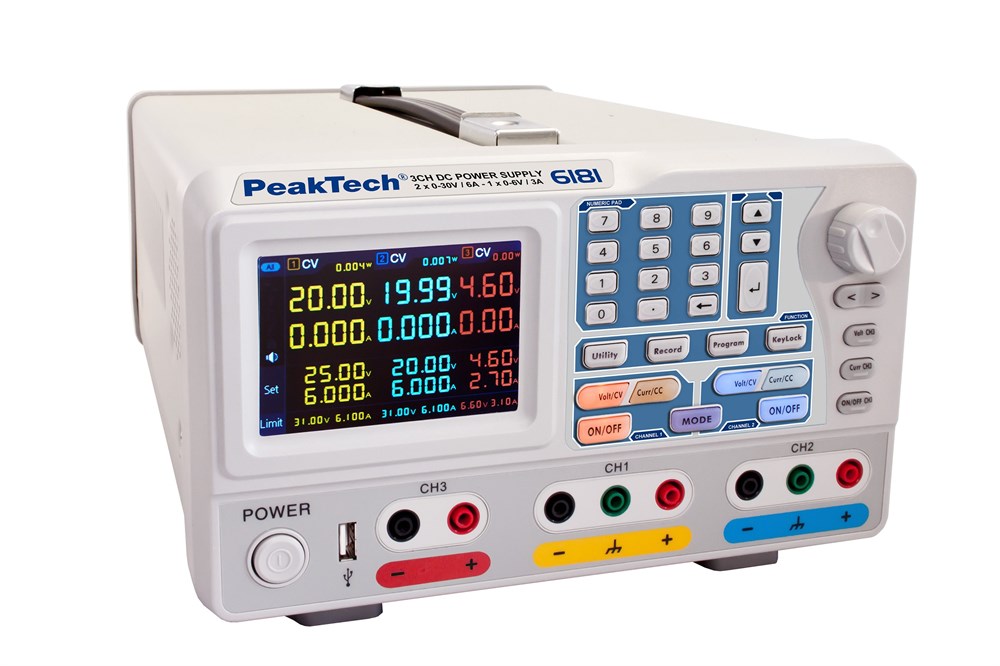

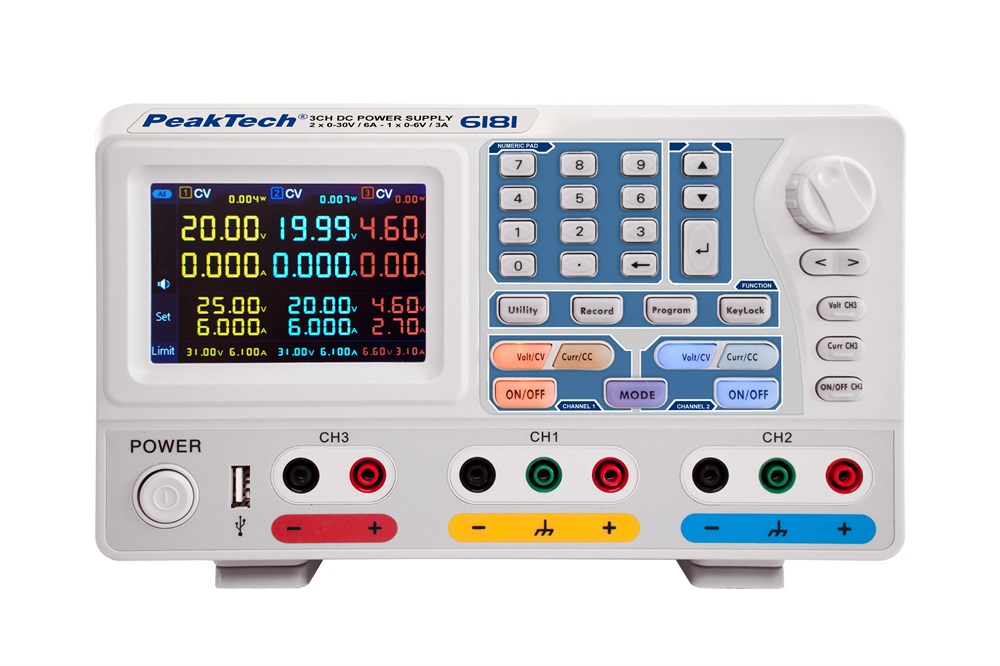

P6181 Programlanabilir DC Güç Kaynağı 2 x 0-30 V/2 x 0-6 A/USB

Marka : Peaktech
Fiyat : 726,44€  + KDV
KDV Dahil : 857,20€
TL Fiyat : 5.472,19TL(KDV Dahil)
Toplam Stok Adedi : 0
* 678,49TL 'den başlayan taksitlerle
:

Programmable DC Power Supply 2 x 0-30 V/2 x 0-6 A; 1 x 0-6 V @ 3 A fixed

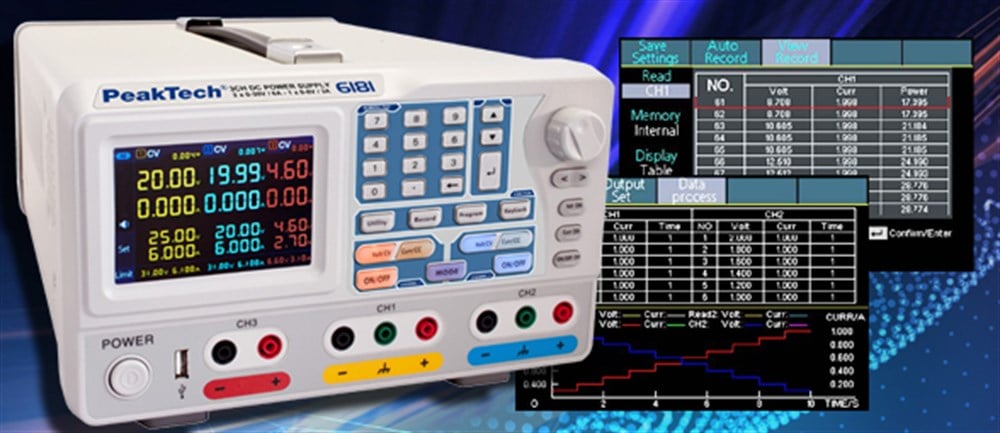

The innovative PeakTech 6181 power supply unit with color TFT display combines the advantages of a linear-controlled laboratory power supply unit with the remote control options, which have mostly been reserved by switching power supplies so far.
It is operated via the graphical menu system and enables simple control and programming of its multiple features. In addition, the device is using the included PC software that allows a complete remote control.
For doubling the output voltage or output current values, the two independent channels can be interconnected in serial or parallel circuit. Also a plus/minus connection of the outputs is possible.
The technique used by this device and the multiple functions integrated are ideal for the use in research and development in HF-sensitive components and PCBs.

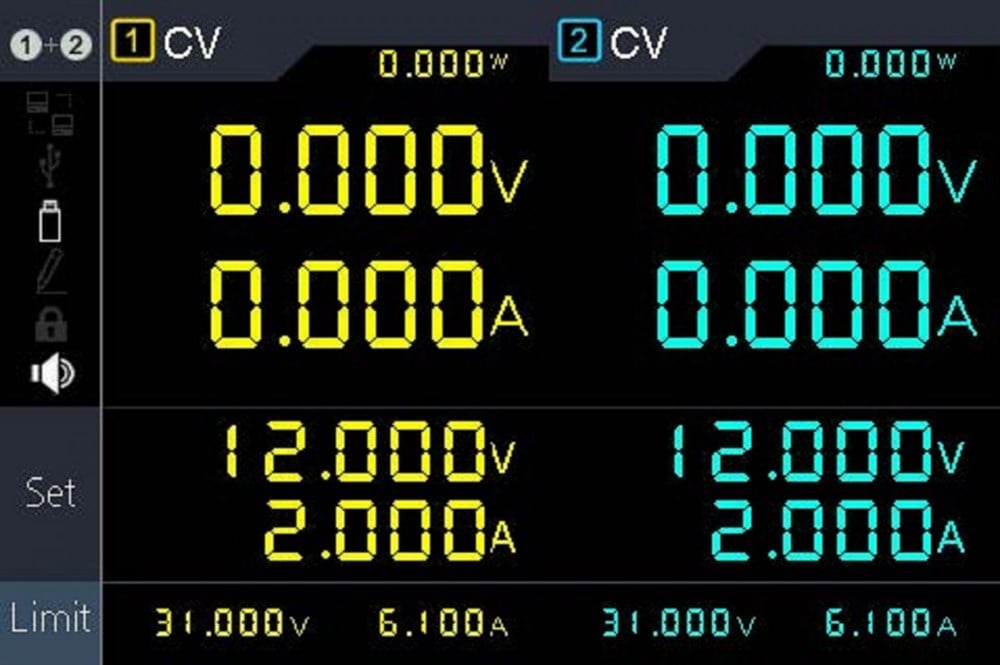

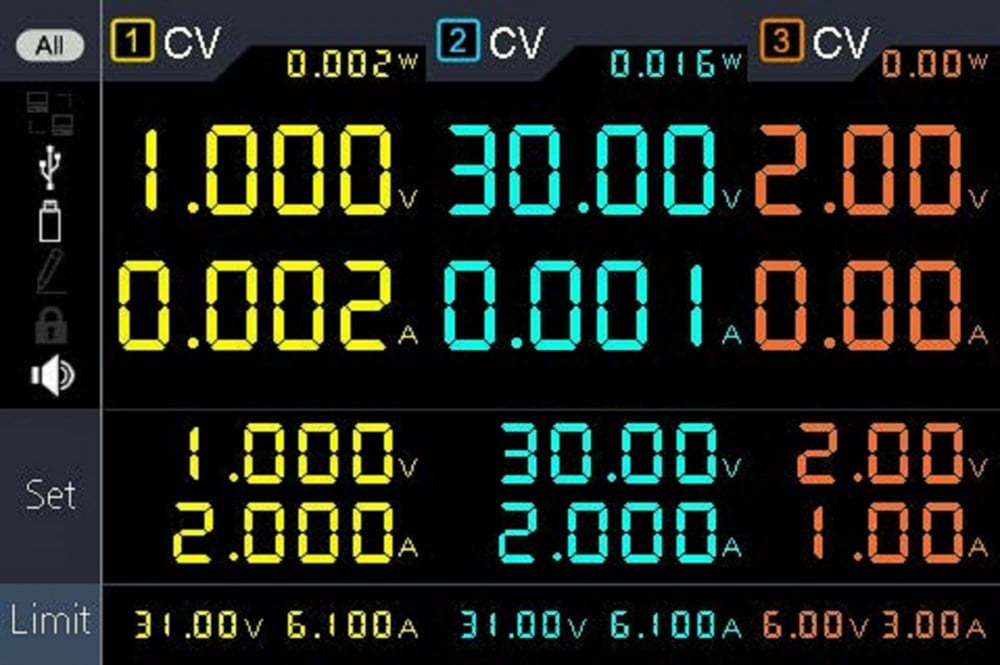

  • 10 cm (3.9 ") TFT color display

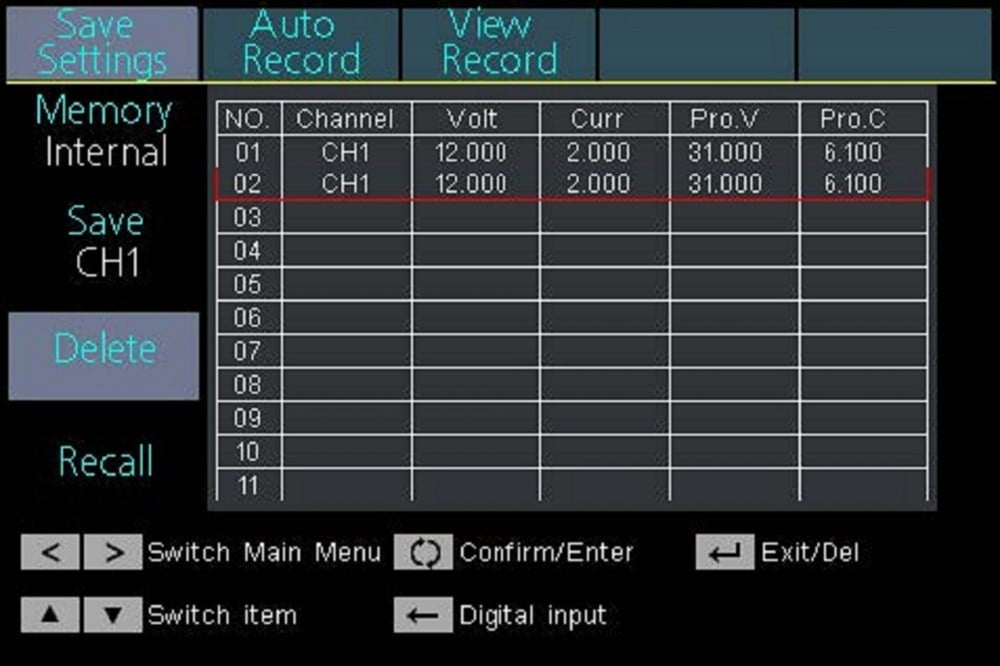

  • Graphical User Menu
  • Two independent channels with 0 to 30 V / 0 to 6 A DC
  • With additional output 0 - 6 V / 3 A DC
  • High output resolution of 1 mV and 1 mA
  • Low Ripple & Noise
  • Over Voltage and Over Current protection
  • Current, Voltage and Power display

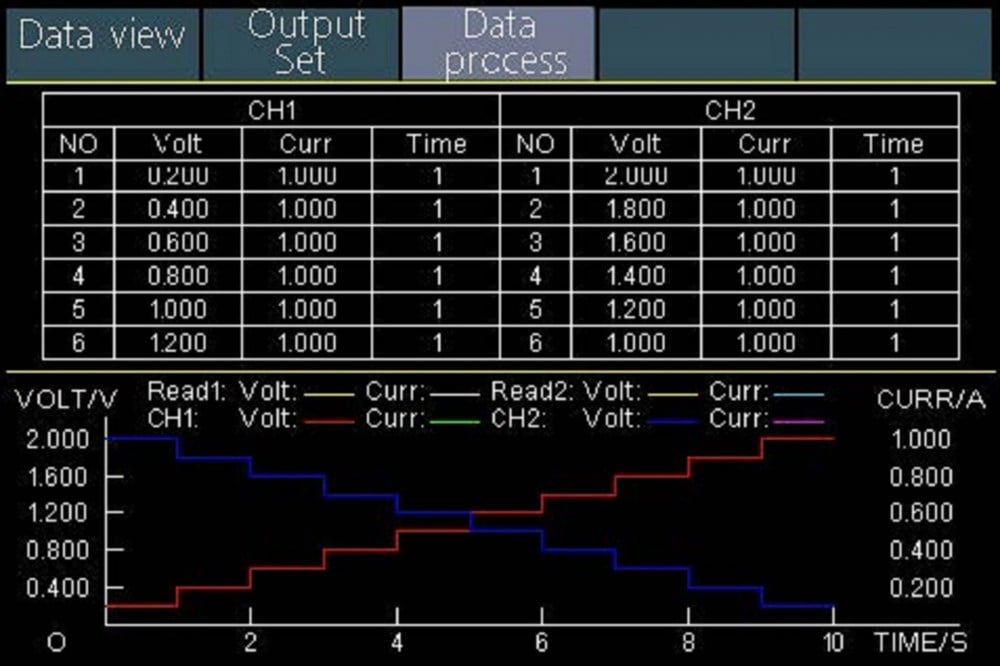

  • Up to 100 Group-Timer steps
  • Time programs selectable as loop or cycle
  • Included PC software for remote control

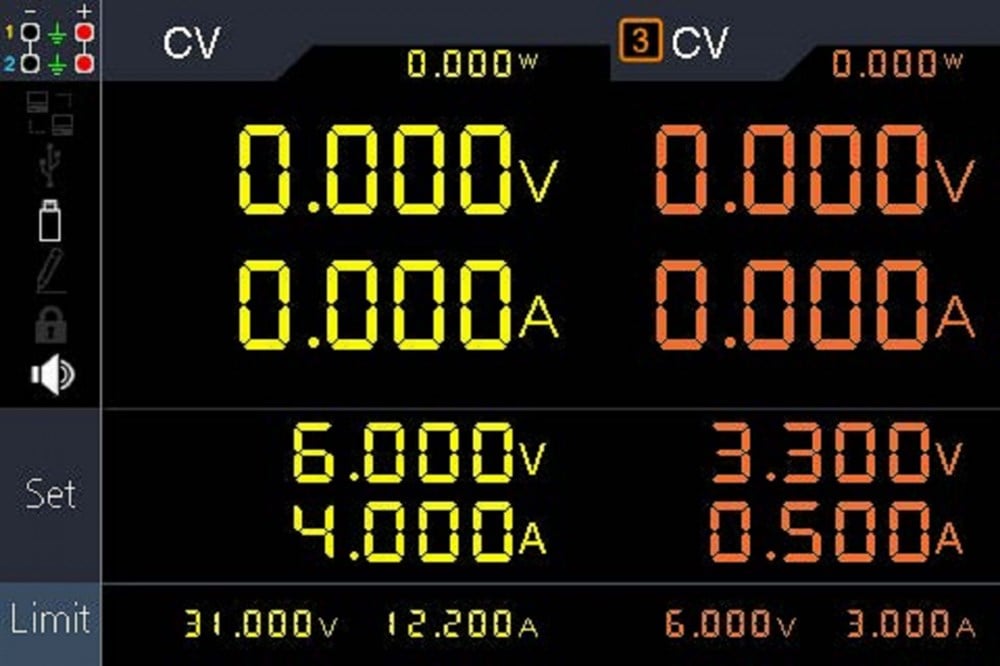

  • Outputs Serial, Parallel, or plus/minus interconnected
  • Record of Output values to USB-Storage
  • LAN, RS-232, USB host and USB Device interface
  • Accessories: Power cable, USB interface cable, software for Windows, Manual
Output voltage2 x 0 - 30 V
Output current2 x 0 - 6 A
Fixed voltage output1 x 0 - 6 V @ 3 A fixed
Output power2 x 180 W, 1 x 18 W
Residual ripple (U)≤ 0.01% + 3 mV
Residual ripple (I)≤ 0.01% + 3mA
Set Resolution U1 mV
Set Resolution I1 mA
Accuracy U≤ 0.03 % + 10 mV
Accuracy I≤ 0.1% + 8 mA
Read Back Accuracy U≤ 0.03 % +10 mV
Read Back Accuracy I≤ 0.1% + 8 mA
Read Back Accuracy U1 mV (< 10 V) ; 10 mV (> 10 V)
Read Back Accuracy I1 mA
DISPLAY SPECIFICATIONS :
Display Size10 cm (3.9”) TFT-Display
Display Resolution480 x 320 Pixel
Display Colors65536 Colors
GENERAL SPECIFICATIONS :

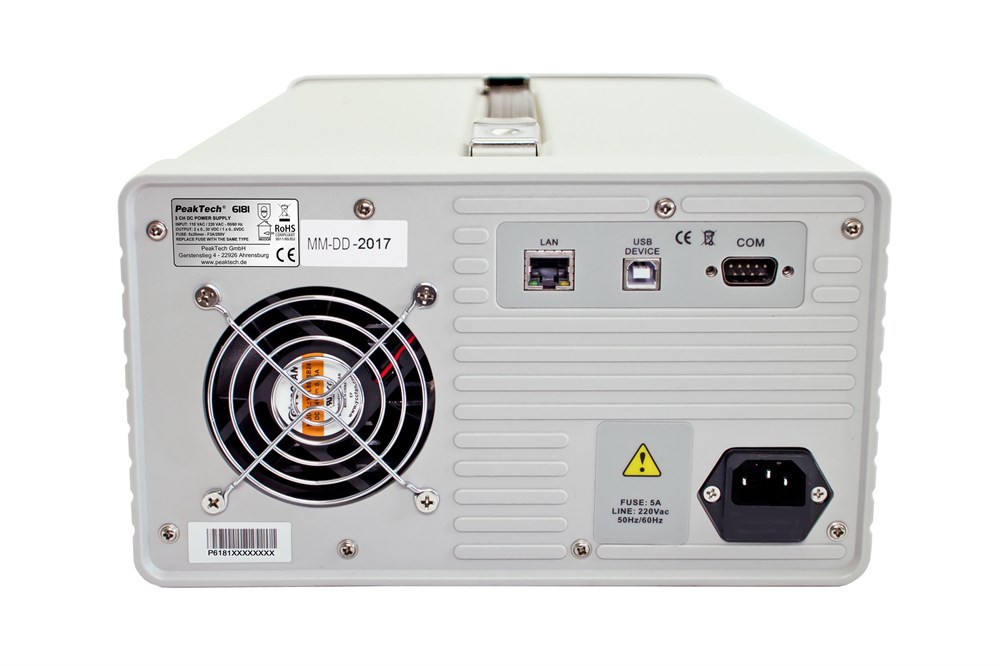

InterfacesLAN, USB host, USB device, RS-232
Operation Voltage110 V - 220 V AC (+/- 10%), 50/60 Hz
CoolingFan Cooling (load dependent)
Dimensions (WxHxD)250 x 160 x 360 mm
Weight12 kg
EAN-134250569404337
