P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH
P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH

P1205 El Tipi Dijital Osiloskop 20 MHz~100 MS/s~2 CH

Marka : Peaktech
Fiyat : 726,44€  + KDV
KDV Dahil : 31.243,37TL
TL Fiyat : 26.477,43TL(4.765,94TL + KDV)
Toplam Stok Adedi : 0
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

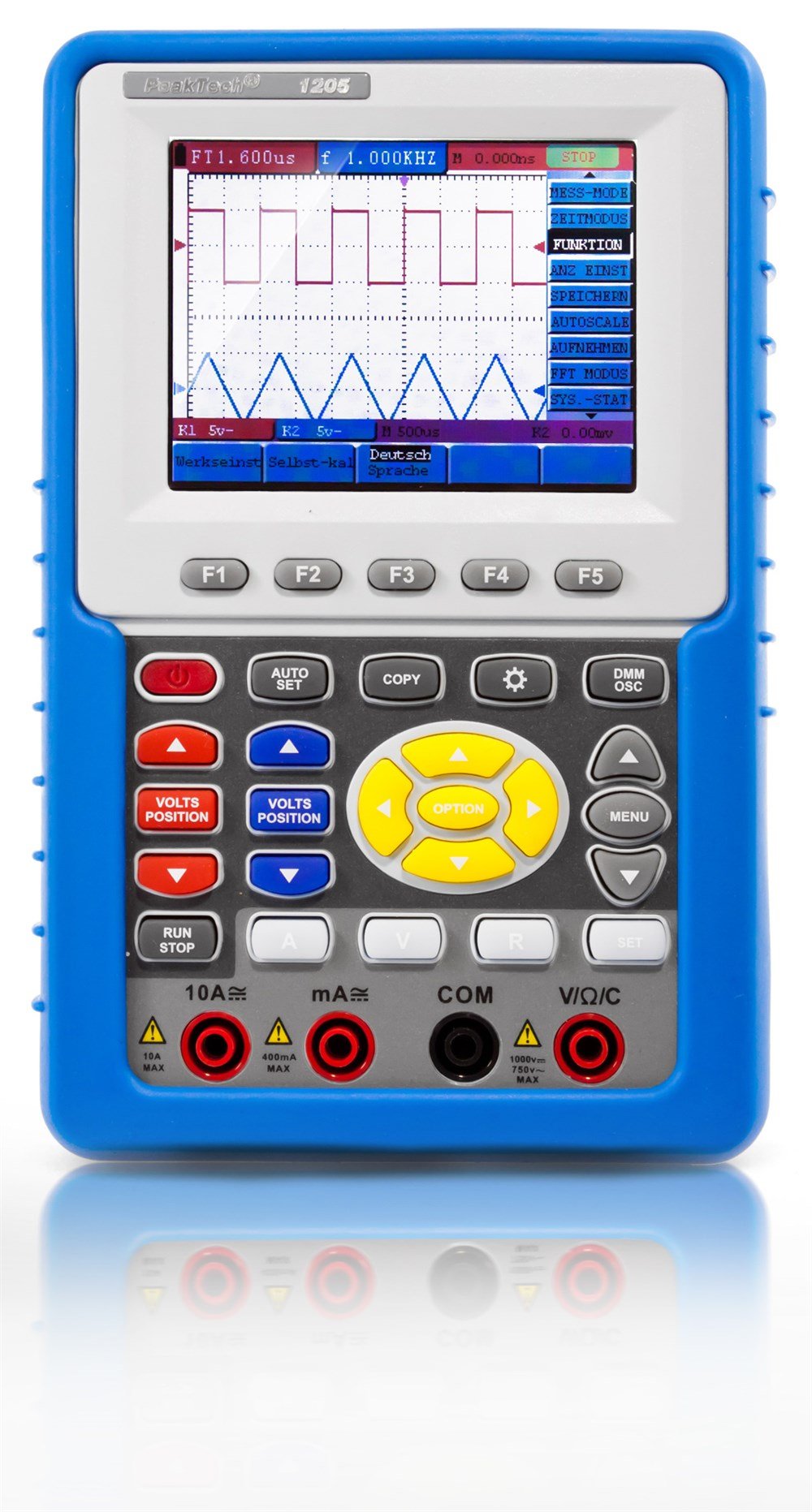

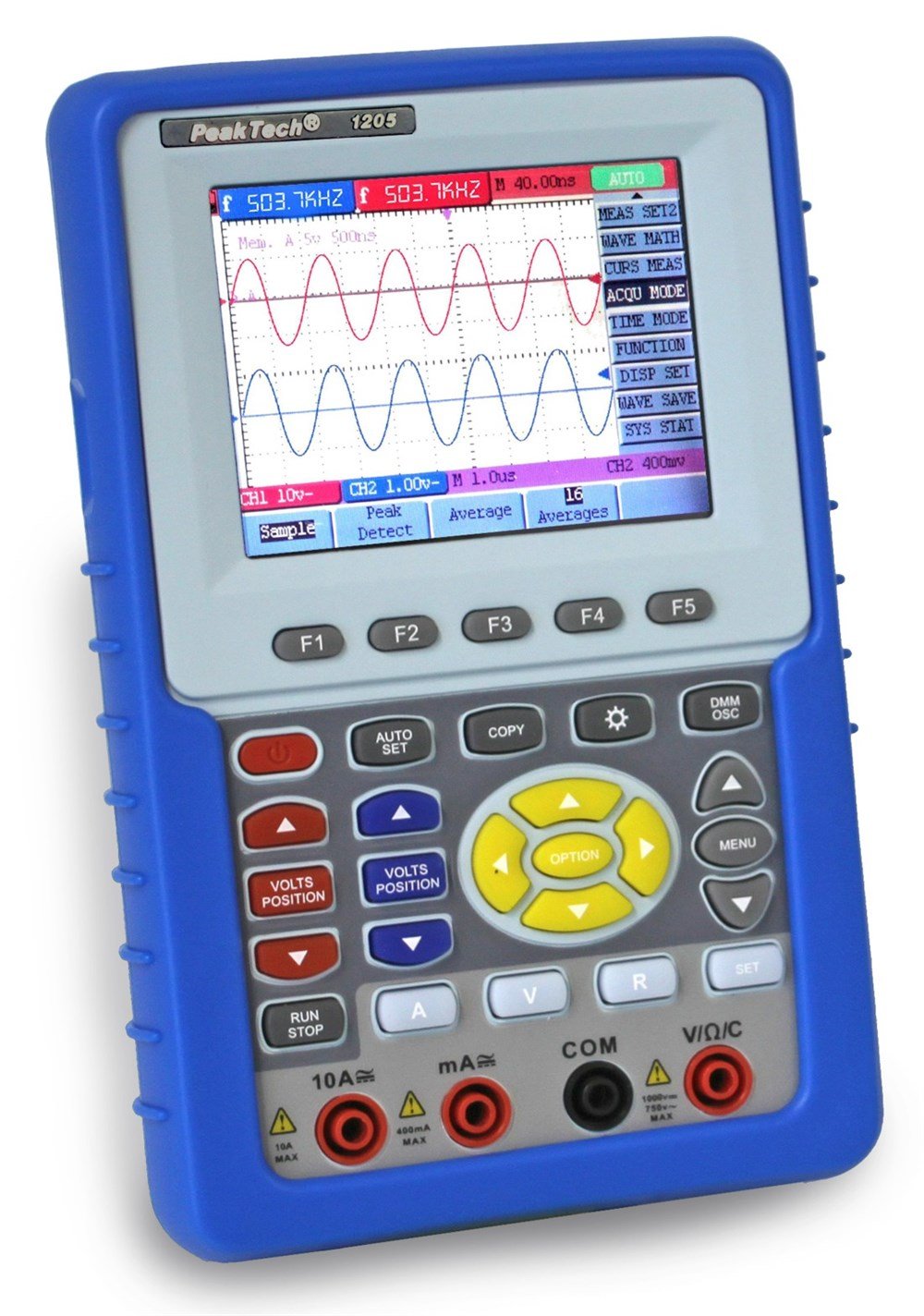

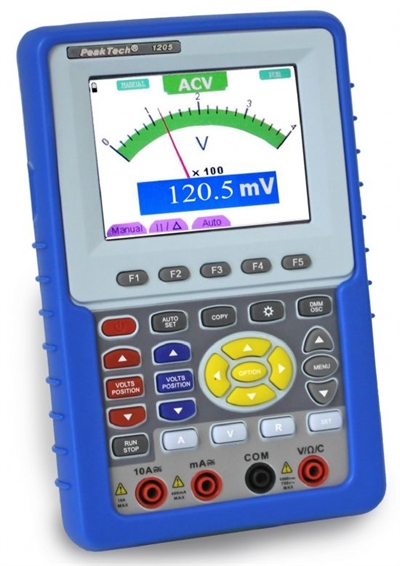

The PeakTech 1205 is a combination out of a digital storage oscilloscope with two channels via BNC sockets and 20 MHz bandwidth and a digital multimeter with 4mm safety sockets for measurements of direct and alternating voltage, direct and alternating current, capacitance and resistance. The display of the True RMS multimeter shows 4000 digital digits and has an additionally simulated analog scale with pointer, which switches automatically depending on the measuring function and range. Measurement data from the oscilloscope and the multimeter can be recorded using a USB stick and can be evaluated on the PC using the included software. The control of all measurement functions is user-friendly via a graphical user interface and it is available in various system languages, which are shown on the large color display which owns a resolution of 640x480 pixels.



Sampling 1 CH: 100 MS/s
Sampling 2 CH: 100 MS/s
USB: ■
Bandwidth: 20 MHz
Battery: Li-Ion 3500 mA
Channels: 2 CH
Display Type: Color-TFT
Hor. scale max.: 100 s/div
Hor. scale min.: 5 ns/div
Mains voltage: 110/240 V AC; 50/60 Hz
Memory depth: 6.000 Points
Resolution: 640 x 480 Pixel
Rise Time: < 17.5 ns
Screen size (TFT): 9,7cm (3,8")
Vert. resolution: 8 Bit
Vert. scale max.: 5 V/div
Vert. scale min.: 5 mV/div
Integr. DMM: ■



  • 2-channel 20 MHz oscilloscope with 100 MS / s sampling rate
  • 9.7 cm (3.8 ”) TFT color display (640x480) 65535 colors
  • Automatic measurement modes (Freq., Mean, Vbase, Vrms ...)
  • Memory length of 6000 points per channel
  • Auto set and auto scale function for waveforms
  • XY mode and FFT function
  • True RMS digital multimeter (4000 counts)
  • Voltage, current, resistance and capacitance measurement
  • Safety: EN 61010-1; CAT II 400 V

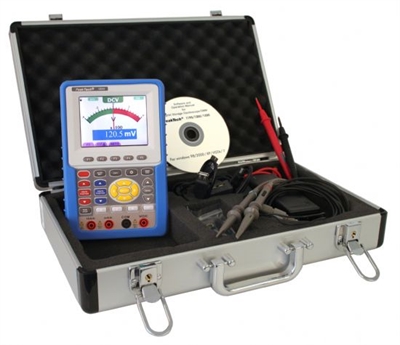

  • Accessories: AC-DC adapter, probes, test leads, USB interface cable, software CD, carrying case and manual
