P1240 Dijital Osiloskop 60 MHz~500 MSa/s~2CH

P1240 Dijital Osiloskop 60 MHz~500 MSa/s~2CH

Marka : Peaktech

Fiyat : 605,16€ + KDV

KDV Dahil : 26.027,25TL

TL Fiyat : 22.056,99TL(3.970,26TL + KDV)

Toplam Stok Adedi : 0

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

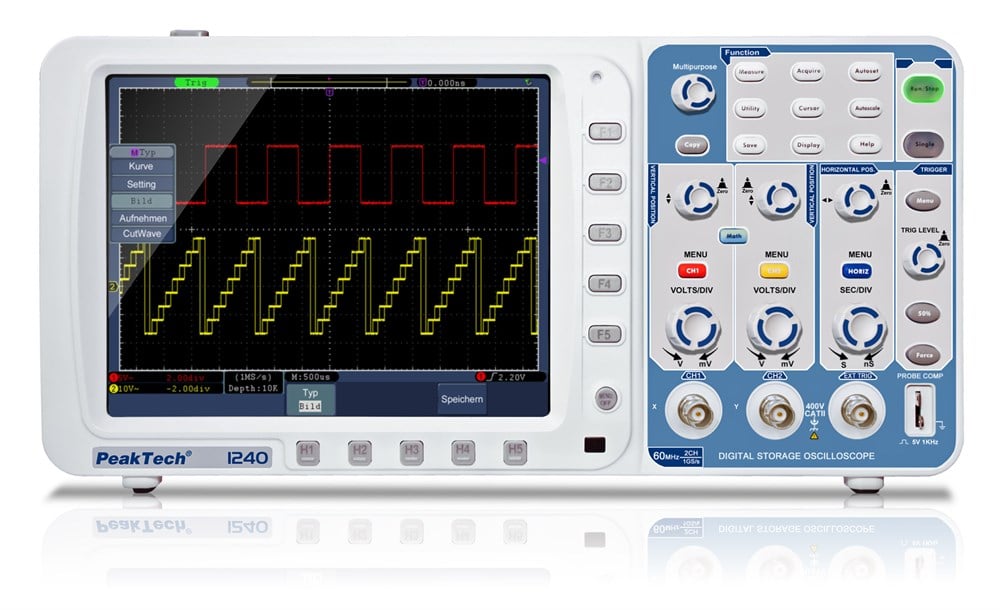

The PeakTech 1240 is a 60 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 500 MS / s and convinces with its high quality and easy handling with the best price / performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With the Autoscale function, the scaling of the time base can be adjusted in a user-friendly manner. In particular, the high memory depth of 10 million points and the simple operation ensure efficient use in daily signal analysis in industry, laboratories and the training area.

Sampling 1 CH:	500 MS/s
Sampling 2 CH:	250 MS/s
USB:	■
Bandwidth:	60 MHz
Battery:	Li-Po 8000 mAh (Optional)
Channels:	2 CH
Display Type:	Color-TFT
Hor. scale max.:	100 s/div
Hor. scale min.:	5 ns/div
LAN:	■
Mains voltage:	110/240 V AC; 50/60 Hz
Memory depth:	10.000.000 Points
Resolution:	800 x 600 Pixel
Rise Time:	< 5.8 ns
Screen size (TFT):	20 cm (8")
VGA:	■
Vert. resolution:	8 Bit
Vert. scale max.:	10 V/div
Vert. scale min.:	2 mV/div

2-channel oscilloscope with 60 MHz analog bandwidth at max. 500 MS / s sampling rate
20 cm (8 “) TFT color display with 800 x 600 pixels
LAN, USB host, USB device & VGA interface
Autoset function for user-friendly operation
Recording length of max. 10 million points
Automatic measurement modes, XY mode and FFT function
Optional battery: "Akku 3" model
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cord, 2 probes, BNC cable, carrying case and manual
