P1265 Dijital Osiloskop 30 MHz~250 MSa/s~2CH

P1265 Dijital Osiloskop 30 MHz~250 MSa/s~2CH

Marka : Peaktech

Fiyat : 483,89€ + KDV

KDV Dahil : 20.839,43TL

TL Fiyat : 17.660,53TL(3.178,90TL + KDV)

Toplam Stok Adedi : 0

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

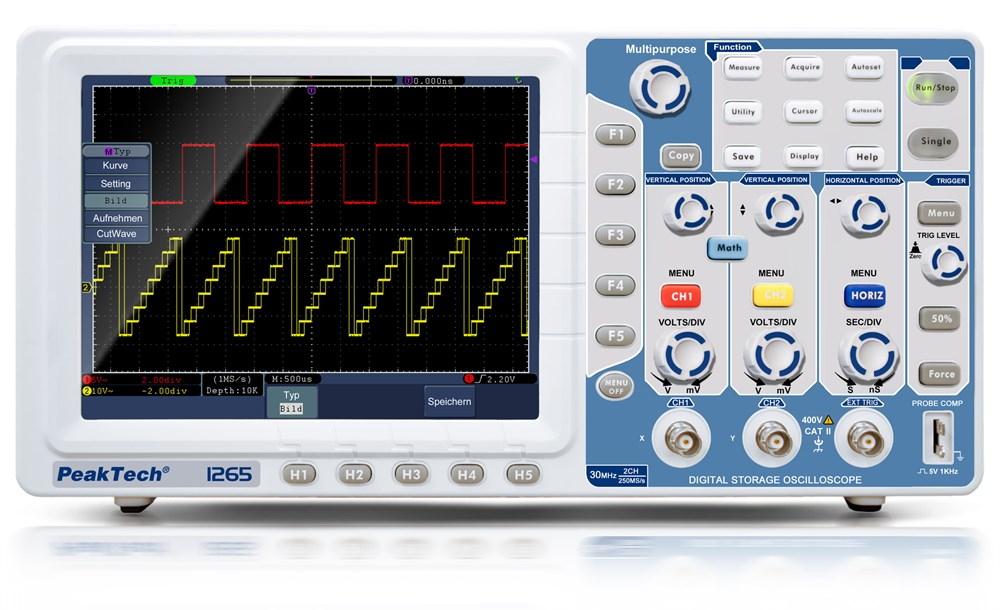

The PeakTech 1265 is an affordable 30 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 250 MS / s and convinces with its high quality and easy handling with the best price / performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner. This oscilloscope has a VGA output for displaying the oscilloscope display on an external monitor or projector.

Sampling 1 CH:	250 MS/s
Sampling 2 CH:	125 MS/s
USB:	■
Bandwidth:	30 MHz
Channels:	2 CH
Display Type:	Color-TFT
Hor. scale max.:	100 s/div
Hor. scale min.:	5 ns/div
LAN:	■
Mains voltage:	110/240 V AC; 50/60 Hz
Memory depth:	10.000 Points
Resolution:	800 x 600 Pixel
Rise Time:	< 14 ns
Screen size (TFT):	20 cm (8")
VGA:	■
Vert. resolution:	8 Bit
Vert. scale max.:	10 V/div
Vert. scale min.:	2 mV/div

2-channel oscilloscope with 30 MHz analog bandwidth at max. 250 MS/s sampling rate
20 cm (8 “) TFT color display with 800 x 600 pixels
LAN, USB host, USB device & VGA interface
Autoset function for user-friendly operation
Recording length of max. 10.000 points
Automatic measurement modes, XY mode and FFT function
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cord, 2 probes, BNC cable, carrying case and manual

Havale ile Ödeme 17.660,53TL + KDV

Kredi Kartı Tek Çekim 17.660,53TL + KDV
