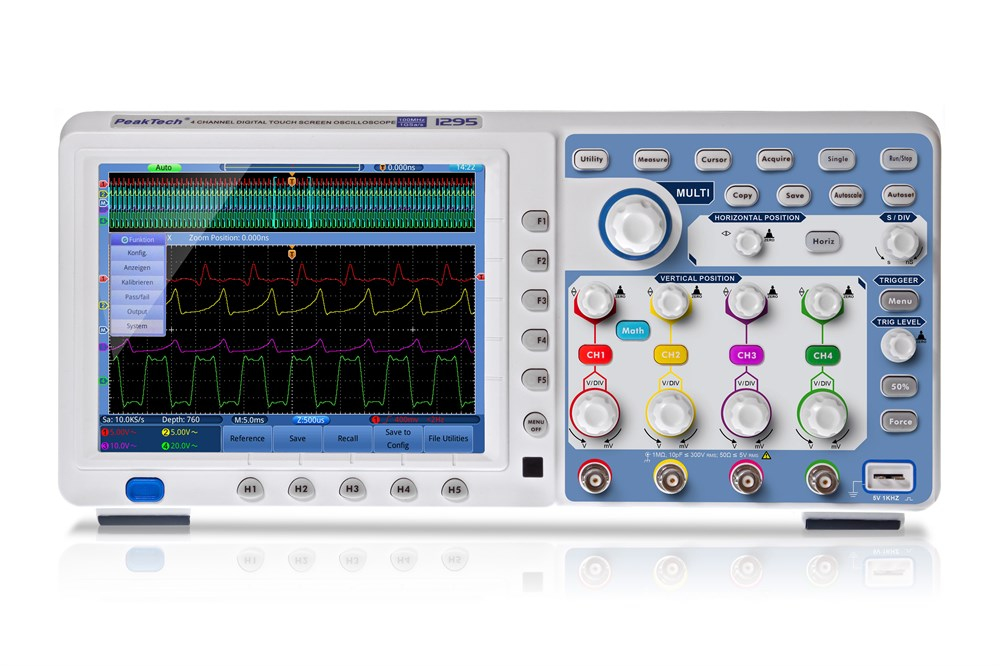

P1295 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH
P1295 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH
P1295 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH

P1295 Dokunmatik Ekran Osiloskop 100 MHz~1GS/s~4CH

Marka : Peaktech
Fiyat : 1.332,81€  + KDV
KDV Dahil : 57.322,66TL
TL Fiyat : 48.578,53TL(8.744,13TL + KDV)
Toplam Stok Adedi : 0
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

This innovative 4-channel digital storage oscilloscope with a sampling rate of 1 GS/s guarantees the best price / performance ratio. The many functions can be controlled using the function keys and rotary controls or via a comfortable touchscreen operation. Due this its possible to select every function in the menu, for example the time base, the sensitivity or even the active signal line on the touchscreen. The zoom function or file management with the keyboard field displayed can also be operated using the touchscreen. In addition to the extensive measurement functions, this device has a LAN interface for integration into networks and a USB interface for data transfer to the PC.



Sampling 1 CH: 1 GS/s
Sampling 2 CH: 500 MS/s
USB: ■
Bandwidth: 100 MHz
Channels: 4 CH
Display Type: Touchscreen TFT
Hor. scale max.: 100 s/div
Hor. scale min.: 2 ns/div
LAN: ■
Mains voltage: 110/240 V AC; 50/60 Hz
Memory depth: 7.600.000 Points
Resolution: 800 x 600 Pixel
Rise Time: < 3 ns
Screen size (TFT): 20 cm (8")
VGA: ■
Vert. resolution: 8 Bit
Vert. scale max.: 10 V/div
Vert. scale min.: 52 mV/div



  • 4-channel oscilloscope with 100 MHz analog bandwidth at max. 1 GS/s sampling rate
  • 20 cm (8 “) TFT color display with 800 x 600 pixels
  • LAN and USB device connection for real-time data transmission
  • USB host connection for external USB data carriers
  • VGA interface for connecting external playback devices
  • Touchscreen for user-friendly operation
  • Recording length of max. 7.6 million points
  • Automatic measurement modes, XY mode and FFT function
  • Safety: EN 61010-1; CAT II 400V
  • Accessories: carrying case, probes, USB cable, BNC cable, manual and software CD​​​​
