P1305 Dijital Osiloskop 70 MHz~1 GSa/s~2CH

Marka : Peaktech

Fiyat : 653,67€ + KDV

KDV Dahil : 28.113,61TL

TL Fiyat : 23.825,09TL(4.288,52TL + KDV)

Toplam Stok Adedi : 0

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

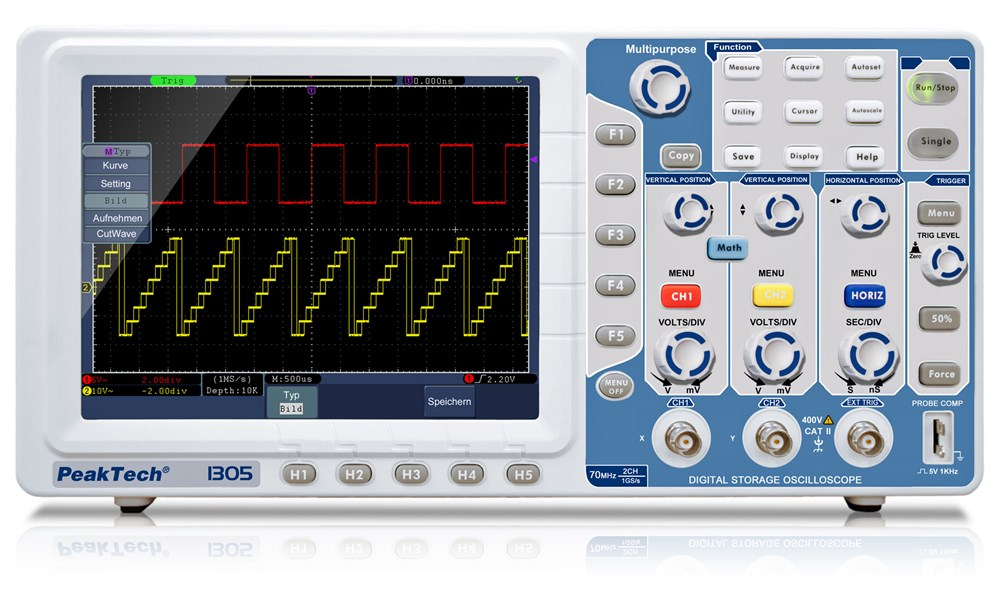

The PeakTech 1305 is an affordable 70 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 1 GS / s and convinces with its high quality and easy handling with the best price / performance ratio. Of course, all models in this series have an XY mode and an FFT function as well as an integrated frequency counter. The data is transferred to the PC via a LAN connection or the USB interface, whereby waveforms can also be saved on a USB memory stick.

Sampling 1 CH:	1 GS/s
Sampling 2 CH:	500 MS/s
USB:	■
Bandwidth:	70 MHz
Channels:	2 CH
Display Type:	Color-TFT
Hor. scale max.:	100 s/div
Hor. scale min.:	2 ns/div
LAN:	■
Mains voltage:	110/240 V AC; 50/60 Hz
Memory depth:	100.000 Points
Resolution:	800 x 600 Pixel
Rise Time:	< 5 ns
Screen size (TFT):	20 cm (8")
VGA:	■
Vert. resolution:	8 Bit
Vert. scale max.:	5 V/div
Vert. scale min.:	5 mV/div

2-channel oscilloscope with 70 MHz analog bandwidth at max. 1 GS/s sampling rate
20 cm (8 “) TFT color display with 800 x 600 pixels
LAN and USB device connection for real-time data transmission
USB host connection for external USB data carriers
VGA interface for connecting external playback devices
Handy and flat housing design with handle
Autoset function for user-friendly operation
Recording length of max. 10 million points
Automatic measurement modes, XY mode and FFT function
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cord, 2 probes, BNC cable, carrying case and manual
