P1336 Dijital Osiloskop 50 MHz~500 MS/s~2CH

P1336 Dijital Osiloskop 50 MHz~500 MS/s~2CH

Marka : Peaktech

Fiyat : 459,63€ + KDV

KDV Dahil : 19.552,04TL

TL Fiyat : 16.569,52TL(2.982,51TL + KDV)

Toplam Stok Adedi : 0

2.424,24TL 'den başlayan taksitlerle

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

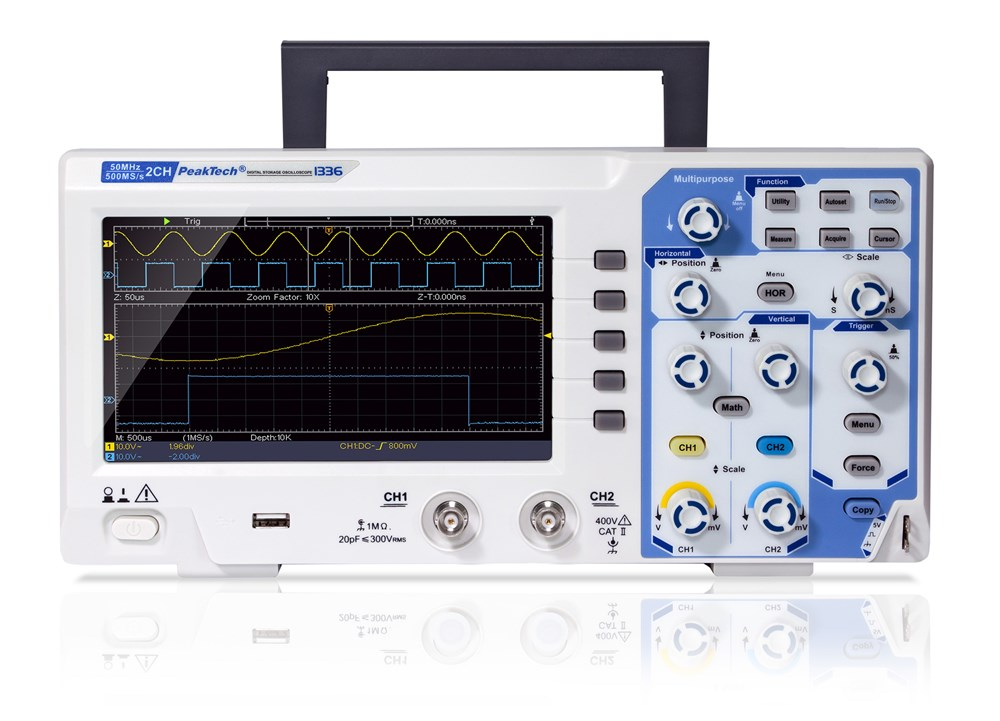

The PeakTech 1336 is an affordable 50 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 500 MS / s and convinces with its high quality and easy handling with the best price / performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner.

Sampling 1 CH:	500 MS/s
Sampling 2 CH:	250 MS/s
USB:	■
Bandwidth:	50 MHz
Channels:	2 CH
Display Type:	Color-TFT
Hor. scale max.:	1000 s/div
Hor. scale min.:	5 ns/div
Mains voltage:	110/240 V AC; 50/60 Hz
Memory depth:	10.000.000 Points
Resolution:	800 x 480 Pixel
Rise Time:	< 7 ns
Screen size (TFT):	17,5 cm (7")
Vert. resolution:	8 Bit
Vert. scale max.:	5 V/div
Vert. scale min.:	5 mV/div

2 - channel oscilloscope with 50 MHz analog bandwidth at max. 500 MS/s sampling rate
17.5 cm (7 “) TFT color display with 800 x 480 pixels
USB device connection for real-time data transmission
USB host connection for external USB data carriers
Autoset function for user-friendly operation
Recording length of max. 10,000 points
Automatic measurement modes, XY mode and FFT function
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cord, 2 probes and manual

Havale ile Ödeme 16.569,52TL + KDV

Kredi Kartı Tek Çekim 16.569,52TL + KDV
