P1340 Dijital Osiloskop 60 MHz~1 GSa/s~4CH

P1340 Dijital Osiloskop 60 MHz~1 GSa/s~4CH

Marka : Peaktech

Fiyat : 738,56€ + KDV

KDV Dahil : 31.417,34TL

TL Fiyat : 26.624,87TL(4.792,48TL + KDV)

Toplam Stok Adedi : 0

3.895,40TL 'den başlayan taksitlerle

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

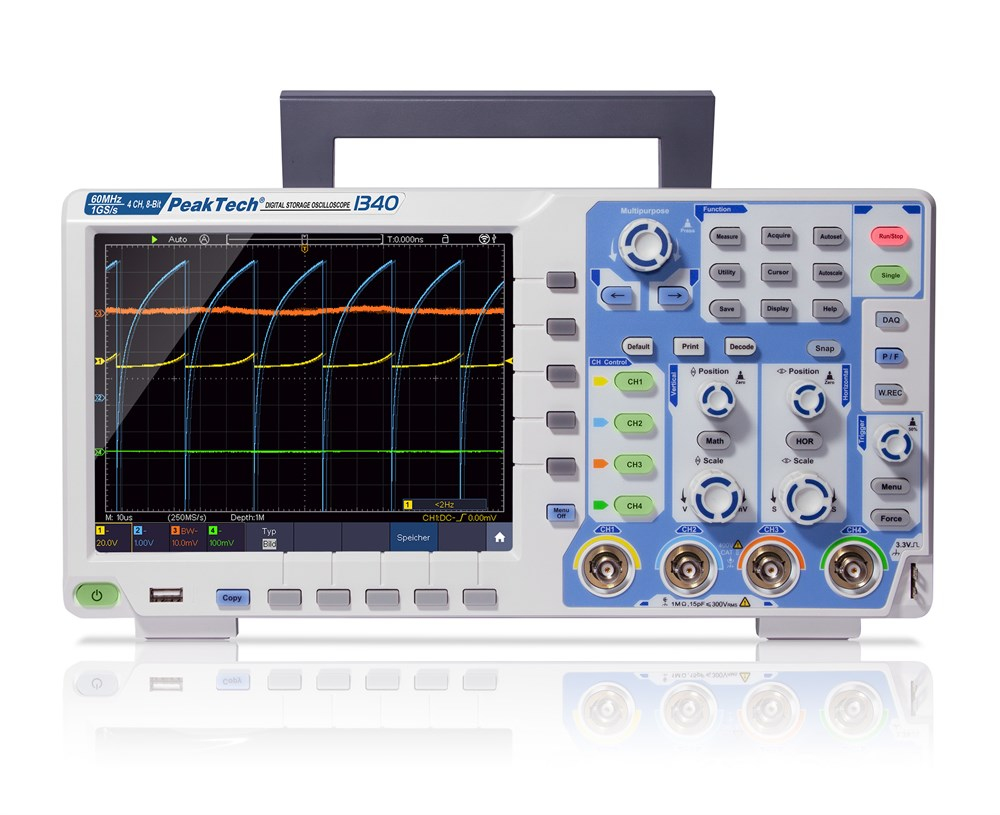

The PeakTech 1340 is a 60 MHz 4-channel digital storage oscilloscope of the latest generation with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 1 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. Of course, all models in this series have an XY mode and an FFT function as well as an integrated frequency counter. The data can be transferred to the PC via a LAN connection or the USB interface, whereby waveforms can also be saved on a USB memory stick while on the move. For this mobile use, an optionally available battery can be installed, which supplies the oscilloscope over the entire working day without an additional power connection.

Sampling 1 CH:	1 GS/s
Sampling 2 CH:	500 MS/s
Sampling 4 CH:	250 MS/s
USB:	■
Bandwidth:	60 MHz
Battery:	Li-Po 13200 mAh (optional)
Channels:	4 CH
Display Type:	Color-TFT
Hor. scale max.:	1000 s/div
Hor. scale min.:	2 ns/div
LAN:	■
Mains voltage:	110/240 V AC; 50/60 Hz
Memory depth:	40.000.000 Points
Resolution:	800 x 600 Pixel
Rise Time:	< 5.8 ns
Screen size (TFT):	20 cm (8")
VGA:	■
Vert. resolution:	8 Bit
Vert. scale max.:	10 V/div
Vert. scale min.:	1 mV/div

4-channel oscilloscope with 60 MHz analog bandwidth at max. 1 GS/s sampling rate
20 cm (8 “) TFT color display with 800 x 600 pixels
LAN and USB device connection for data transmission
Autoset function for user-friendly operation
Recording length of max. 40 million points
Automatic measurement modes, XY mode and FFT function
Optional battery: "Akku 6" model
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cord, 4 probes, BNC cable, carrying case and manual

Havale ile Ödeme 26.624,87TL + KDV

Kredi Kartı Tek Çekim 26.624,87TL + KDV
