P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH
P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH
P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH
P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH
P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH
P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH

P1355 Dokunmatik Ekran Osiloskop 60 MHz~1GS/s~2CH

Marka : Peaktech
Fiyat : 859,84€  + KDV
KDV Dahil : 36.576,43TL
TL Fiyat : 30.996,97TL(5.579,46TL + KDV)
Toplam Stok Adedi : 0
4.535,07TL 'den başlayan taksitlerle
:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

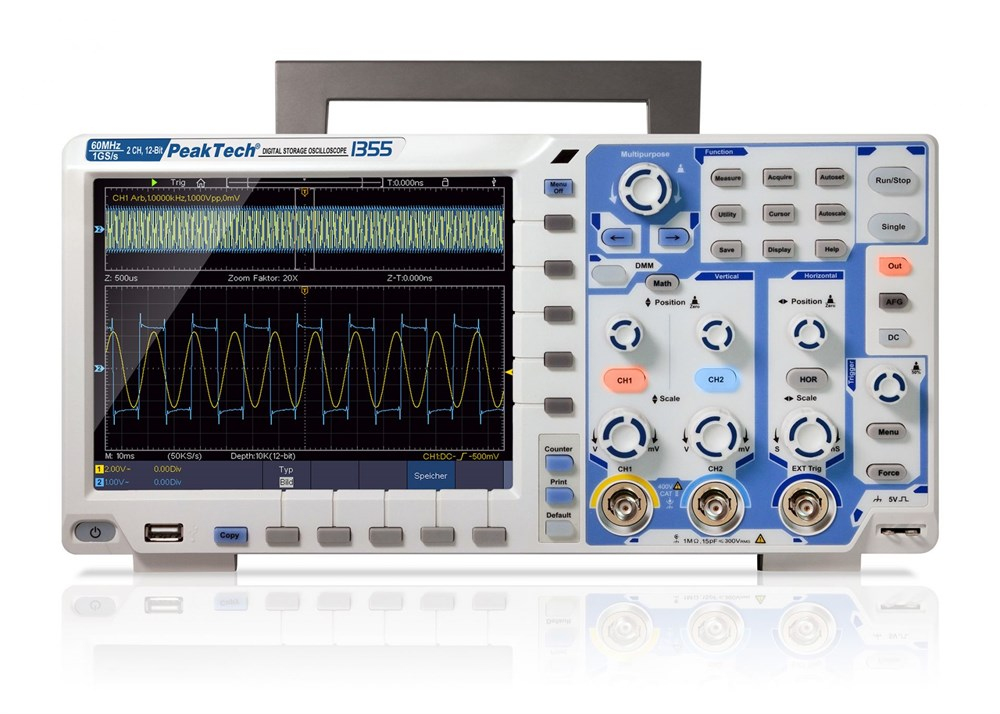

60 MHz/ 2 CH, 1 GS/s, Touchscreen Oscilloscope

2-channel Touchscreen digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions.

For data transmission of the measured values to the PC or for remote control, various interfaces such as LAN & USB (Host & Device) are available.

This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.

  • High-resolution TFT color display with 800 x 600 pixels
  • 20 cm (8“) TFT color display
  • 12-Bit vertical resolution for accurate waveforms
  • LAN & USB port for real time data transmission
  • Saving of measured values and graphics directly onto the USB-disk
  • Use the optional battery (Model: Akku 6) for off-grid operation
  • Handy and flat case design with carrying handle
  • Autoset function for easy operation
  • Record lenght of max. 40 Mio. points
  • Automatic measurement modes and FFT function
  • Safety: EN 61010-1; CAT II
  • Accessories: USB cable, software CD for Windows, power cable, 2 probes and manual
Bandwidth 60 MHz
Display 20 cm (8") color-TFT
Resolution 800 x 600 Pixel
Channel 2 CH
SPECIFICATIONS :
Sampling rate (1/2 CH) 1 GS/s; 500 MS/s
Waveform refresh rate 75.000 wfms/s
Rise Time ≤ 5.8 ns
Vertical sensitivity 1 mV - 10 V/div.
Vertical resolution 12 Bits
Horizontal scale 2ns - 1000s/div.
Trigger type Edge/Video/Pulse/Slope ...
Trigger mode Auto, Normal, Single
GENERAL :
Record length 40.000.000 points
Interfaces LAN, USB Device, USB Host
Dimensions (WxHxD) 340 x 175 x 90 mm
Weight ca. 2,6 kg
EAN 4250569404443
