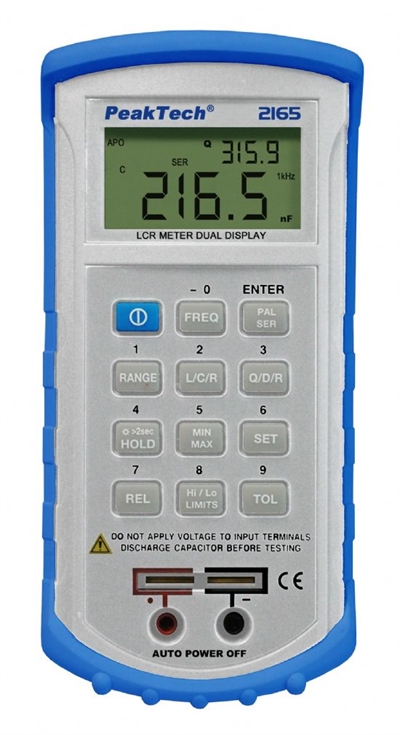

Digital LCR meter with 4 ½ digit dual multifunction LCD-display. The dual display feature permits simultaneous measurements. Components can be measured in the series or parallel mode and the LCR-meter is auto or manual ranging.
Measurement modes
Ls, Lp, Cs, Cp, D, Q, R
Capacitance measurement ranges
20/200 nF/2/20/200µF/2/10 mF ± 0,7 % + 5 St. / dgt.; 0,1 pF
Inductance ranges
20/200 mH/2/20/200H/2/10 kH ± 1,2 % + 5 St. / dgt.; 0,1 µH
Ohm ranges
20/200Ω/2/20/200 kΩ/2/10 MΩ ± 0,5 %; 1 mΩ
Operation voltage
9 V battery or external Power adapter 12 V- 50 mA DC
Dimensions (W x H x D)
91 x 192 x 53 mm (incl. Holster)
Weight
365 g
EAN-13
4250569400438

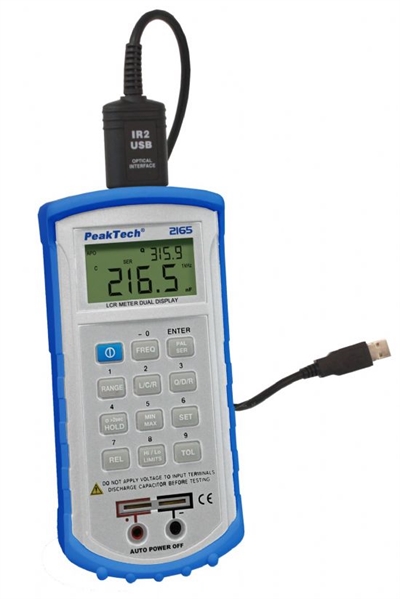

USB interface
Basic accuracy: 0,5 % resistance 0,7 % capacitance
1,2 % inductance
Excellent resolution: resistance up to 0,001 Ω
inductance/capacitance up to 0,1µH/0,1 pF
Auto power off (switching off permanent measurements)
Defective fuse warning
Relative measurement
Switchable testfrequencies: 120 Hz/1 kHz
Min-Max/Hi-Lo/tolerance-display
Accessories: USB interfacecable, software for Windows 95/98/NT/2000/XP/VISTA/7/8/10, testleads, holster, battery and manual
