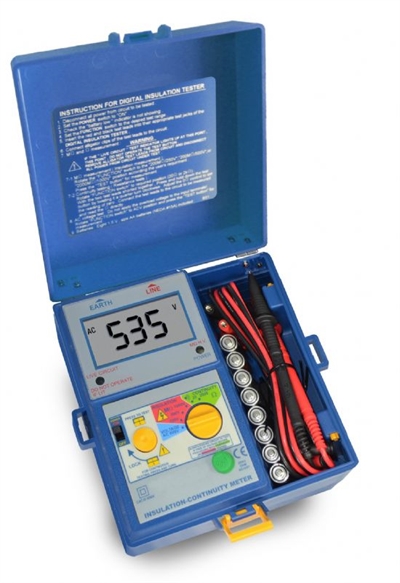

P2670 İzolasyon Megeri 250/500/1000 V; 2000 MΩ

This insulation tester with three test voltages of 250 V, 500 V and 1000 V is suitable for insulation testing according to the VDE-0413. The suitability for measurements in CAT III systems and the warning when voltage carrying networks are detected, as well as the stable case with shoulder strap ensures a safe operation.

Insulation range/test voltage	200 MΩ/250V; 200 MΩ/500 V; 2000 MΩ/1000 V; ± 1,5 % + 5 dgt. 100 kΩ
Short circuit current	1 mA DC
ACV	600 V; 1,5 %+ 3 dgt. - 1 V
Ohm	20/2 kΩ; ± 1,5 % + 3 dgt. - 10 mΩ
Operation voltage	8 x 1,5 V (UM3, AA)
Dimensions (WxHxD)	165 x 170 x 92 mm
Weight	1040 g
EAN-13	4250569400490

• Large 3 ½ digit LCD Display (max. 2000)

• Three insulation DC test voltages 250/500 and 1000 V

• Test insulation at rated voltage into a 1 mA load.

• 200 mA short circuit continuity current.

• External voltage warning indication.

• Fuse protection

• Safety: EN 61010-1; CAT III

• Accessories: Test leads, alligator clips, carrying belt, batteries and manual
