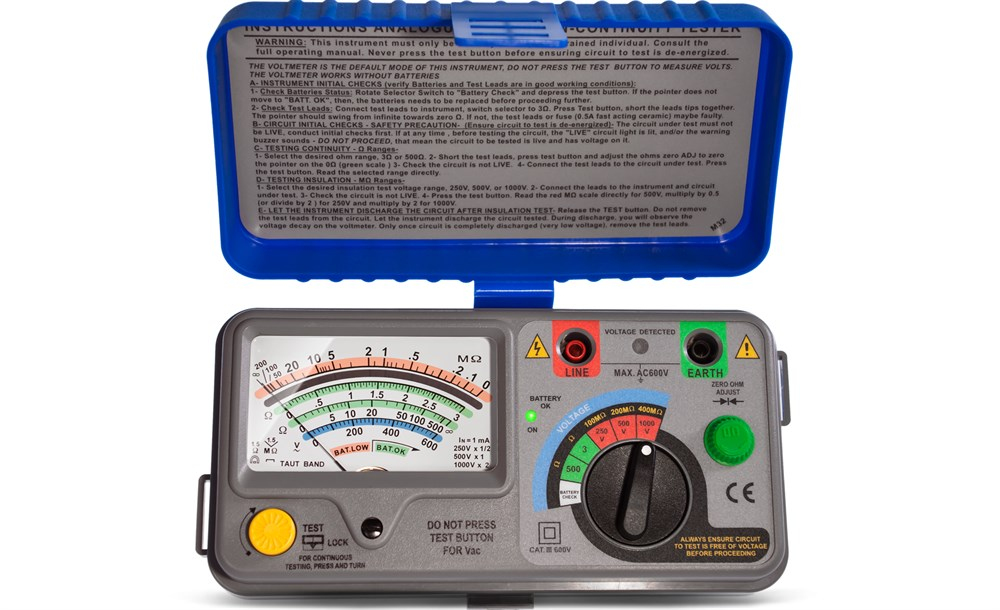

This analogue insulation measuring device is required for various measurements of cables, components and their insulation. The voltage required for the insulation measurement can be set using the rotary switch. By pressing the test button, the set voltage is output and the device / line to be measured is checked. In order to carry out a measurement continuously without having to keep the button pressed, the test button can be rotated while pressing it. In the insulation measurement function, three voltage values can be selected to cover a wide range of test types. Furthermore, AC voltages and resistances can be measured with the PeakTech 2675, which makes this device ideal for professionals as well as for training purposes.
Display Type:
Analog
Over voltage category:
CAT III 600 V
Test voltage:
250 V, 500 V, 1000 V
OHM max.:
400 MΩ
Analog-Anzeige
Isolations-Testbereiche: 100 MΩ/250 V; 200 MΩ/500 V; 400 MΩ/1000 V
ACV-Messungen max. 600 V
205 mA Kurzschlussstrom in der Durchgangstestfunktion 3 Ω/500 Ω
Automatisches Entladen von Kondensatoren (kapazitive Spannungen)
Automatische Erkennung anliegender Spannung
Batterie-Testfunktion
Durchgangsprüfung
Überlastschutz und Batteriezustandsanzeige
Sicherheit: EN 61010-1; CAT III 600 V
Zubehör: Prüfleitungen, Krokodilklemmen, Trag
