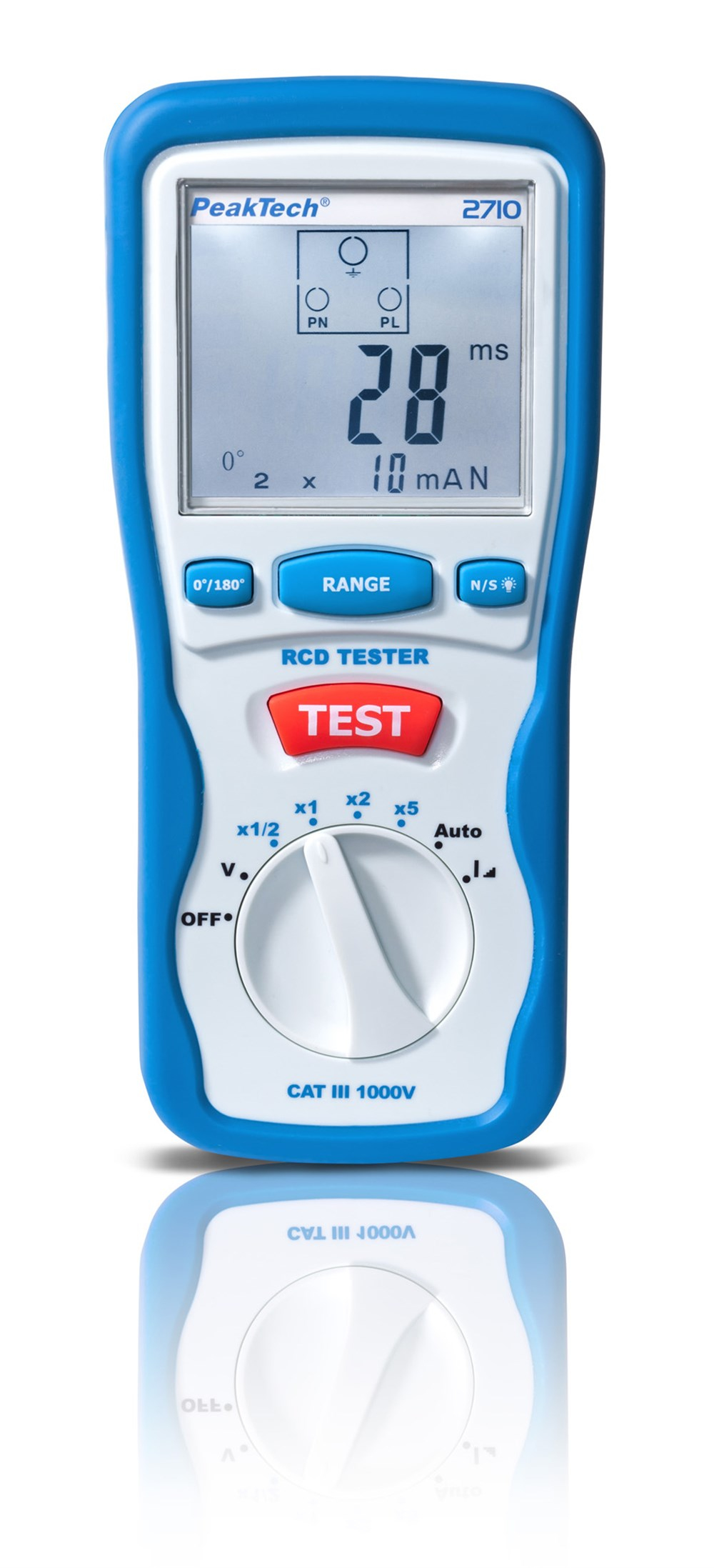

P2710 RCD Test Cihazı

The PeakTech 2710 is a residual current tester, which is used to determine tripping currents and the tripping times of residual current circuit breakers, which are used in every new building according to current building regulations. Residual current circuit breakers are used for personal protection and switch off a circuit when a residual current is registered which flows off via the protective earth (PE). RCD testers let a fault current flow and thus determine at which fault current the RCD triggers. The tripping time is also measured. These two parameters, tripping current and tripping time, are the safety-relevant parameters of an RCD. The various selectable test currents and characteristics that can be set with this device make the PeakTech 2710 the ideal companion for every electrician.

• 3-digit LCD measurement display with backlight
• Normal (N) or selective (S) type RCD test
• Adjustable limits for the RCD tripping time
• Adjustable limits of the tripping currents
• Adjustable limits for the ramp test
• Applicable measurement standards: IEC 61557-6, NF EN 61557-6, VDE 0413-6
• Safety: EN-61010-1; CAT III 600 V, IP40, double insulated housing
• Accessories: case, test leads, batteries and manual
