P3430 Dijital Multimetre 20.000 Sayım~1000V DC/700V AC~10A AC/DC/USB True RMS

Marka : Peaktech
Fiyat : 157,05€  + KDV
KDV Dahil : 6.680,69TL
TL Fiyat : 5.661,61TL(1.019,09TL + KDV)
Toplam Stok Adedi : 0
:

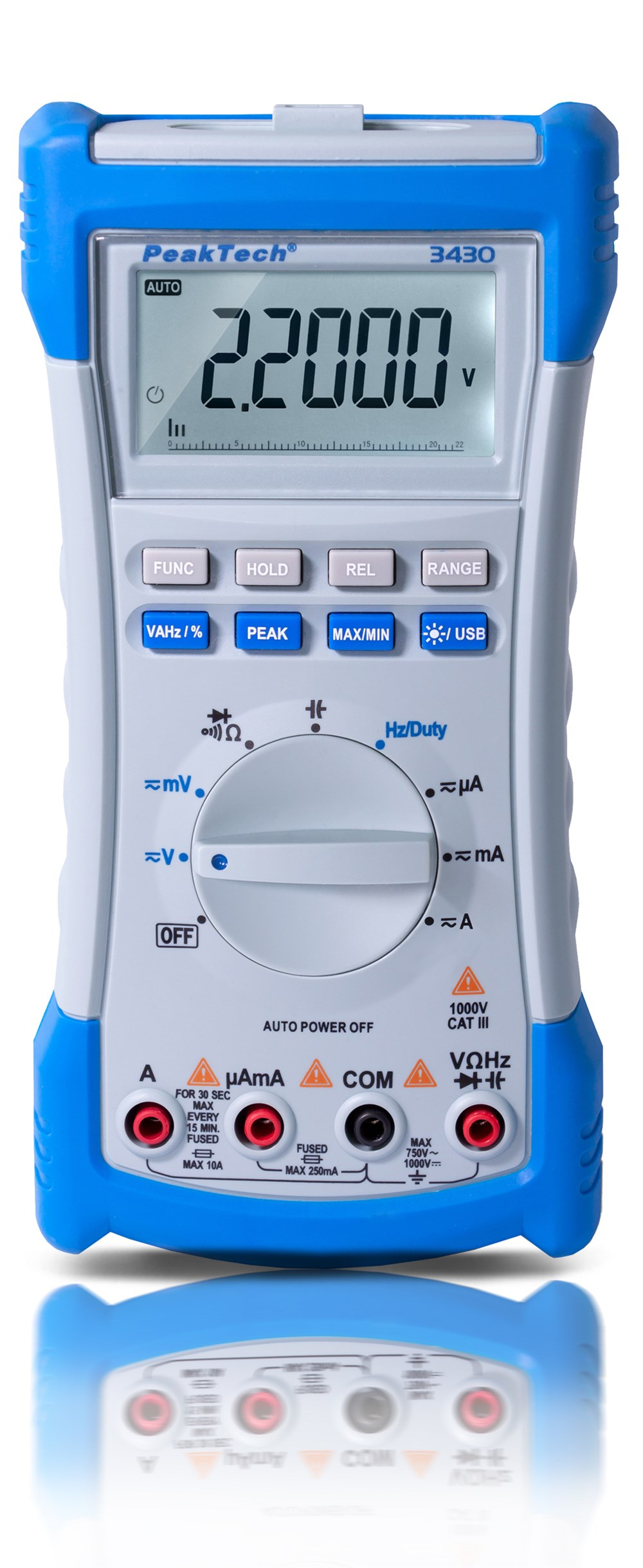

Professional digital multimeter with large (21mm digit height), easy to read and illuminated LCD display. This model has a high basic accuracy (0.05%), True RMS measurement for AC voltage & current, maximum / minimum value storage (MAX-MIN) as well as peak value recording and a high resolution with a maximum display of 22,000 counts. All measured values ​​can be transferred to a PC via the integrated USB interface and recorded, evaluated and further processed with our free software "PeakTech DMM-Tool". The automatic measuring range selection ensures user-friendly operation, only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacitance, frequency and resistance, this model has a continuity test with an acoustic signal and a diode test.



USB:
Basic Accuracy DC: +/- 0,05%
Battery: 1,5V AA
Capacitance max.: 220 mF
Digital counts: 22.000
Display Type: LCD
Over voltage category: CAT III 1000 V
Range selection: Auto
True RMS:
TÜV/GS:
V DC max.: 1000V
A AC max.: 10A
Hz max.: 220 MHz
OHM max.: 220 MΩ
mA DC max.: 220mA
mV DC max.: 220 mV
µA DC max.: 2200 µA
V AC max.: 750 V
mV AC max.: 220 mV
A DC max.: 10A
mA AC max.: 220 mA
µA AC max.: 2200 µA



  • 21 mm, 4 1/2-digit LCD display with backlight and 46-segment bar graphics; Max. Display: 22000
  • Fully "PeakTech DMM Tool" compatible
  • True RMS measurement for ACV and ACA
  • USB 2.0 interface for the transmission of measurement data
  • Measuring rate: approx. 4x / sec. (2x / sec via USB)
  • Diode and continuity test function
  • Measured value, maximum value and minimum value hold function
  • Automatic and manual range selection
  • Automatic switch-off and battery status display
  • Safety: EN 61010-1; CAT III 1000V / CAT IV 600V

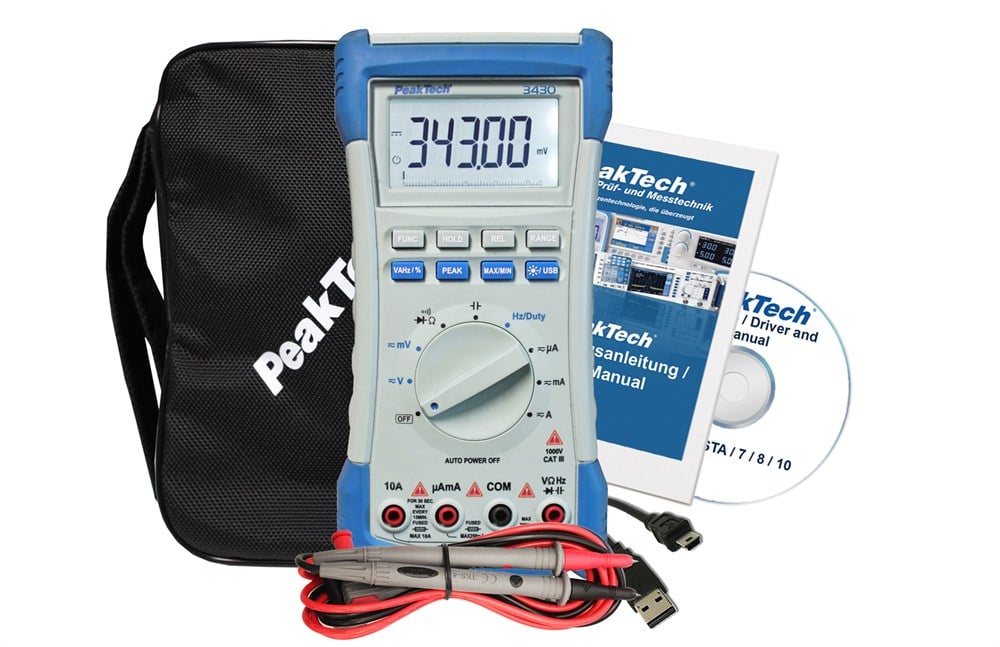

  • Accessories: test leads, bag, USB interface cable, software for Windows, batteries and manual
