P3440 Grafik Ekran True RMS Multimetre 50.000 Sayım~1000V AC/DC

Marka : Peaktech
Fiyat : 241,34€  + KDV
KDV Dahil : 10.266,28TL
TL Fiyat : 8.700,23TL(1.566,04TL + KDV)
Toplam Stok Adedi : 0
1.272,90TL 'den başlayan taksitlerle
:

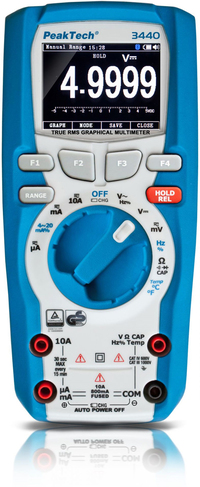

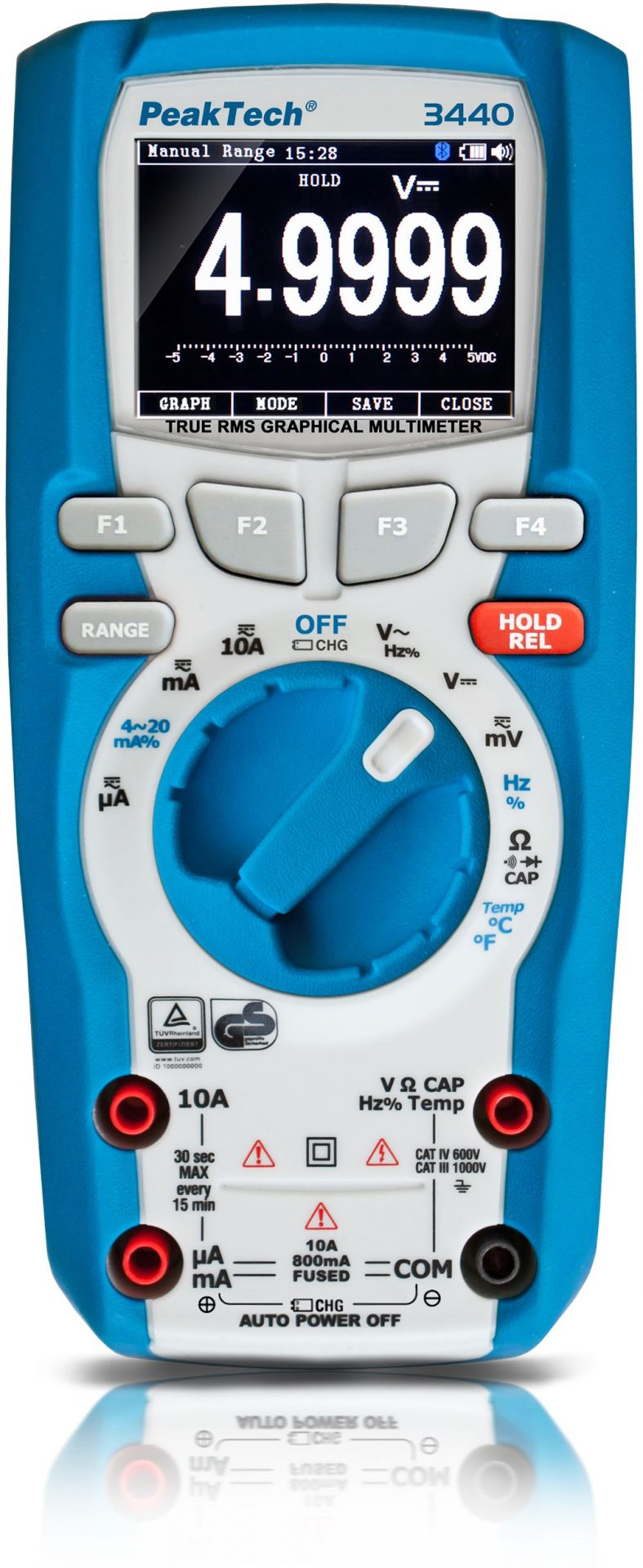

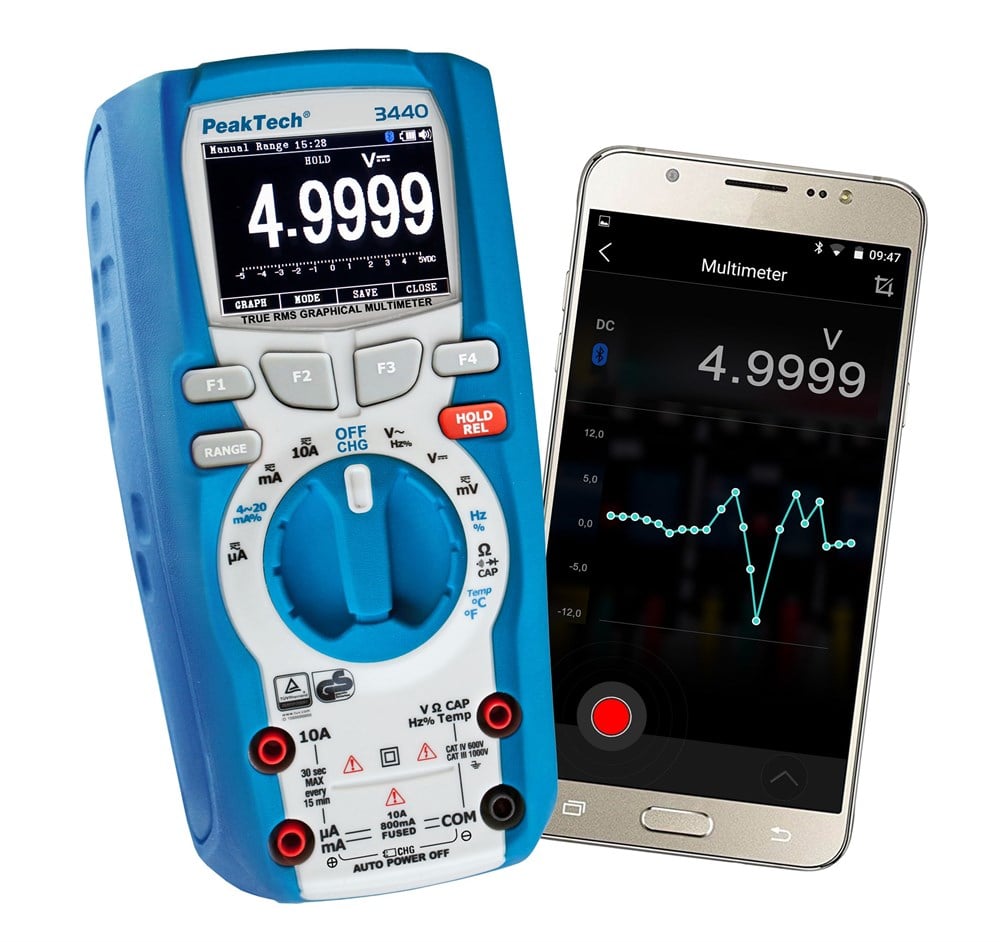

The PeakTech 3440 is an innovative graphic multimeter with a 50,000-digit color TFT display for precise measurements with a high DC basic accuracy of 0.05%. The internal data logger enables the recording of measured values, which can be recorded over a period of several hours and the transfer to a Windows PC at a later time is ensured. Internally stored measured value recordings can also be accessed and graphically displayed on the multimeter itself or on the PC. Via Bluetooth, the measured values ​​can also be displayed live via app for Android and iOS devices, recorded in a table and e.g. send by email for further processing. This multimeter has a variety of measurement functions for direct and alternating voltage measurements (incl.ACV + DCV), direct and alternating current measurements, resistance, capacitance, frequency or temperature, whereby alternating voltage and alternating current are recorded as True RMS values. Due to the extensive measurement functions and the intuitive operation, this device is ideally suited for every electronics engineer, technician and engineer who attach great importance to a precise, indestructible and technically powerful multimeter.





Basic Accuracy DC: +/- 0,05%
Battery: Li-Po 1200 mAh
Bluetooth:
Capacitance max.: 10 mF
Digital counts: 50.000
Display Type: Color-TFT
Memory (internal):
OHM resolution min.: 0,01 Ω
Over voltage category: CAT III 1000 V, CAT IV 600 V
Range selection: Auto
Screen size (TFT): 5,6 cm (2,2")
True RMS:
TÜV/GS:
V AC resolution min.: 0,01 mV
V DC Auflösung min.: 0,01 mV
V DC max.: 1000V
A AC max.: 10A
Hz max.: 10 MHz
OHM max.: 50 MΩ
Temp. max.: 1350 °C
Temp. min.: -100 °C
mA DC max.: 500mA
mV DC max.: 500 mV
µA DC max.: 5000 µA
V AC max.: 1000V
mV AC max.: 500 mV
A DC max.: 10A
mA AC max.: 500 mA
µA AC max.: 5000 µA







  • True RMS voltage measurements up to 1000 V AC / DC
  • True RMS current measurements up to 10 A AC / DC
  • Color TFT display with 50,000 digital digits
  • Bluetooth interface for app and PC software

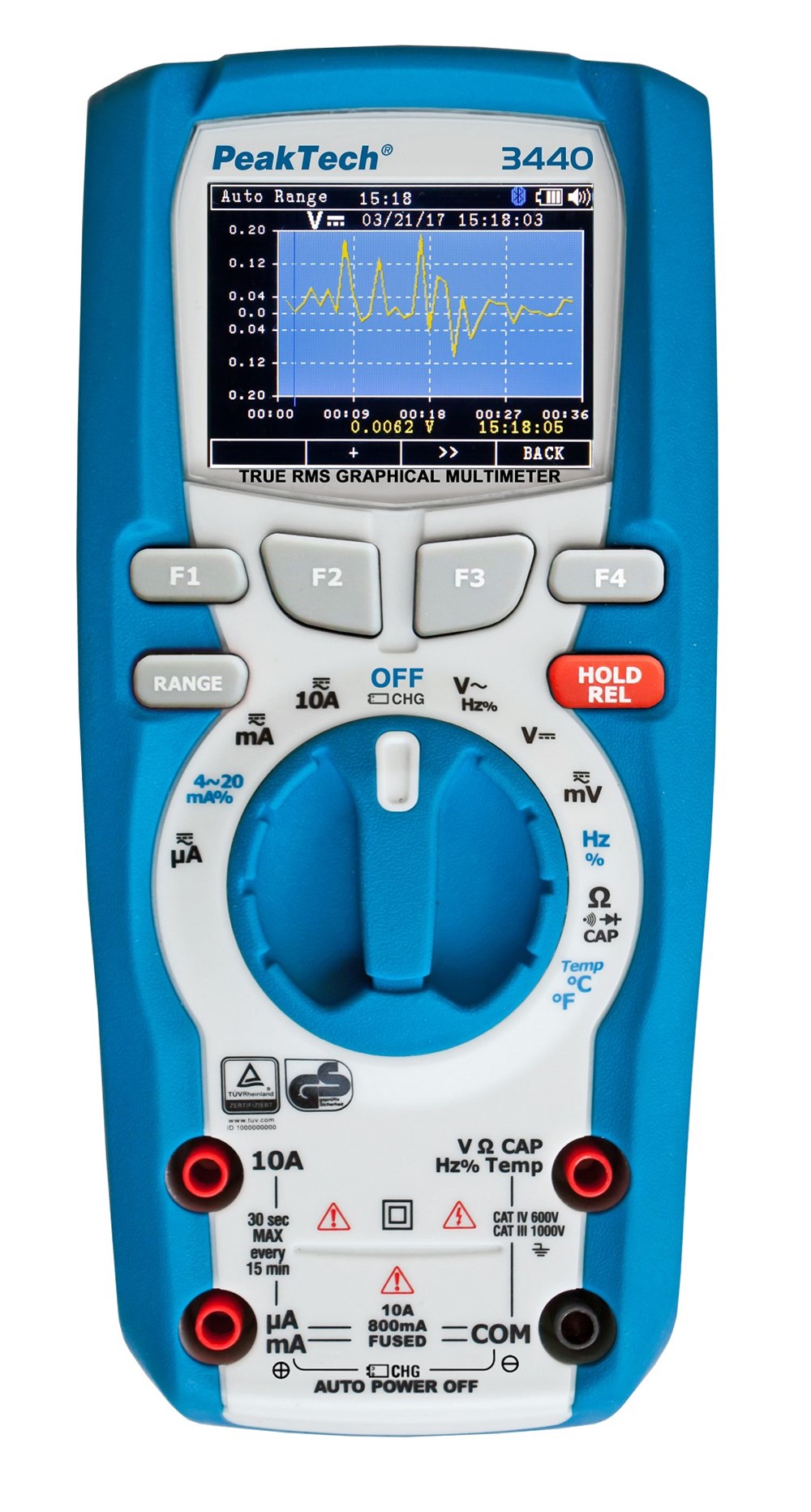

  • Internal data logger with curve display
  • Low Z, AC + DC and 4 ~ 20 mA% measurement functions
  • Maximum value, minimum value function and average function
  • Safety: TÜV / GS, EN 61010-1, CAT III 1000 V / CAT IV 600V
  • Accessories: charger, temperature sensor, carrying case, test leads, BT adapter, software and manual
