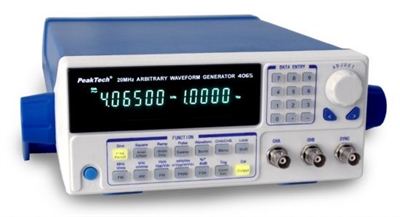

P4065 DDS Arbitrary Sinyal Jeneratörü 1 µHz - 20 MHz

20 MHz DDS Arbitrary Waveform Generator of the high performance for the fast completion of measuring in areas of education, servicing, manufacturing and engineering.



Frequency range	1 µHz - 20 MHz (Sinus)
Output waveforms	16 waveforms such as sine, square, triangle, etc.
Modulation	FM, AM, PM, PWM, FSK
Outputs	CH A, CH B, SYNC
Inputs	Modulation In; ext. Trigger In; Count In
Harmonic distortion	-40 dBc
Total distortion	< 1 %
Square waveform	< 35 ns rise/fall time
Duty cycle	0,1 - 99 %
Smallest frequency resolution	1 nHz
Amplitude range	0 - 20 Vpp (without load); 0 - 10 V (50 Ω - load)
Amplitude offset	+/- 10 V (without load); +/- 5 V (50 Ω - load)
Amplitude resolution	≤ 2 Vpp = 0,2 mVpp / < 2 Vpp = 2 mVpp
Operation voltage	100 ~ 240 V AC; 45-60 Hz
Dimensions (WxHxD)	260 x 105 x 330 mm
Weight	1,5 kg



• 6 digit LED display
• HF accuracy: 20ppm
• Arbitrary: 11 internal fixed waveforms and five custom waveforms
• Without limitation for the whole range, digital setting directly
• Function of frequency sweeping, start point and end point can be set arbitrary
• Frequency or period, virtual value or peak-peak value can be selected
• Keyboard operation, direct digital setting or continuous adjusting
• Equipped with USB device (software connection) and USB host (mass storage) interface
• Safety: EN 61010-1; CAT II
• Accessories: power cable, USB interface cable, software for Windows XP/VISTA/7/8/10, BNC cable and operation manual
